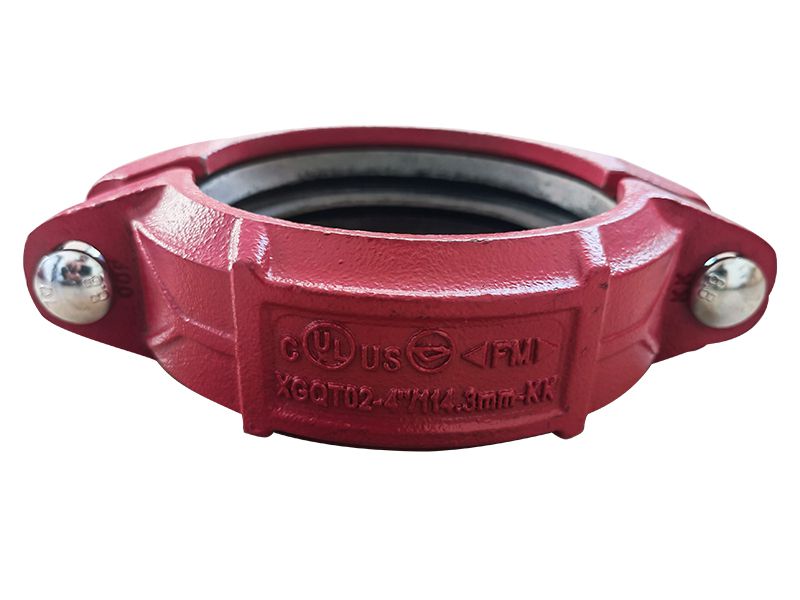

Grooved One-Stop Coupling

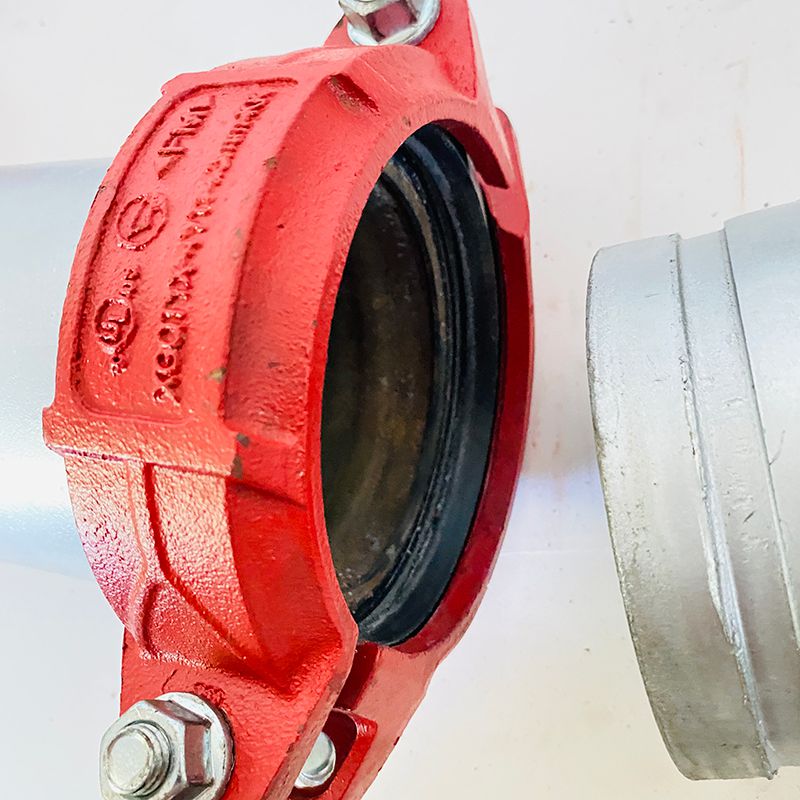

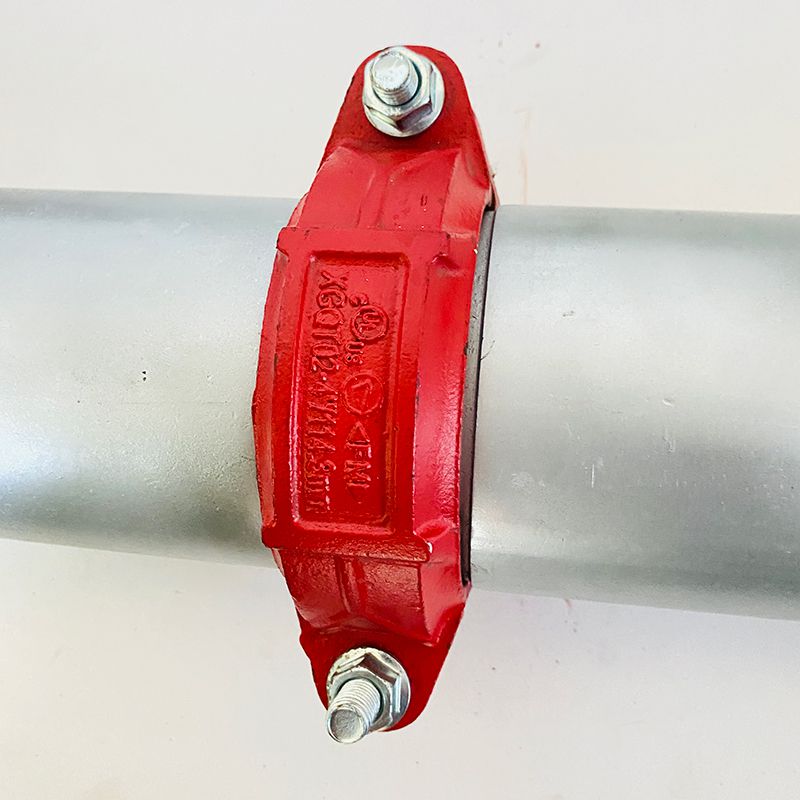

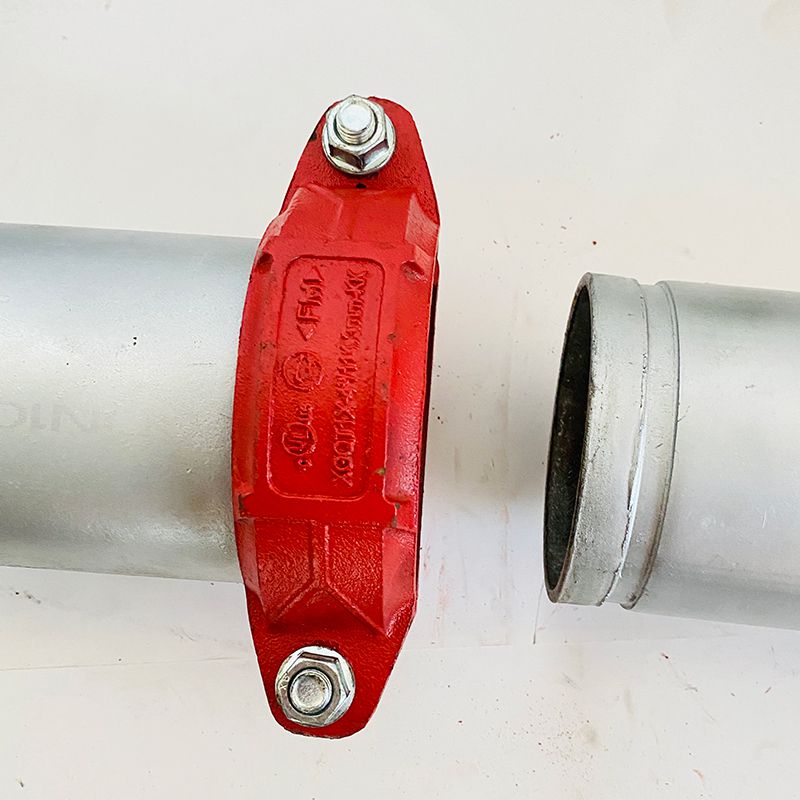

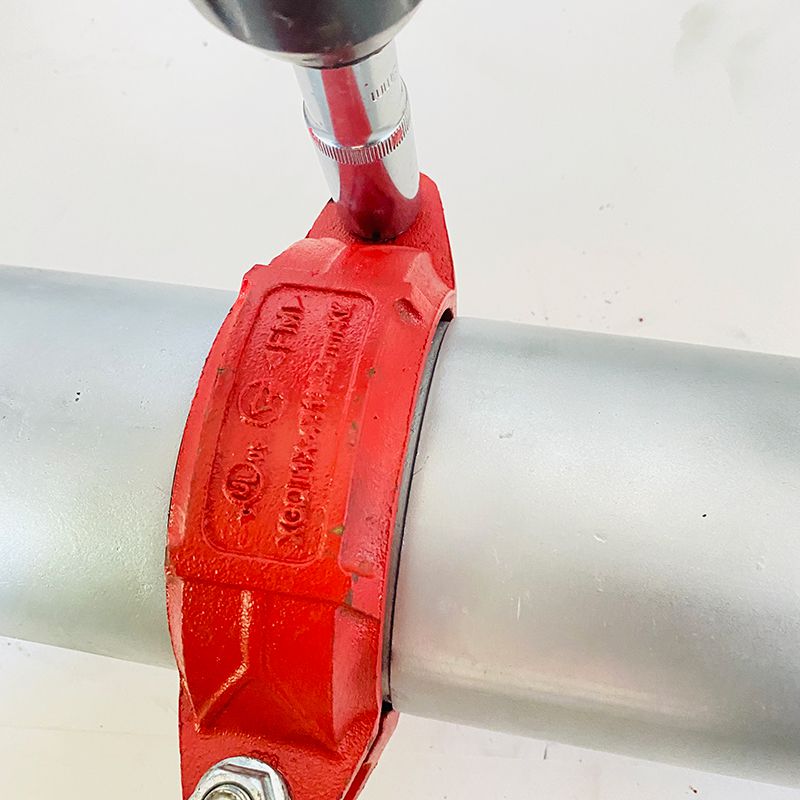

Grooved one-stop coupling is a type of rigid quick-change pipe fitting. With a unique structural design, it eliminates the need to disassemble bolts, nuts, and gasket during installation. The coupling can be directly inserted into the pipe end and tightened with bolts and nuts.

Features

The installation efficiency is more than three times that of standard couplings. The unique structural design prevents the loss of bolts and nuts during the installation process.

Recommended Applications

Grooved one-stop coupling is suitable for various types of pipes, such as water supply, drainage, HVAC systems, and other pipelines.

Send Inquiry

Key Specifications

Available sizes: 1~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy/galvanized
Color: red/orange/white, etc.
Material: ductile iron

Content

Nominal Size	Pipe OD	Dimensions			Bolt Size
mm/in	mm/in	mm/in			No.-Size / mm
mm/in	mm/in	A / mm	B / mm	C / mm	No.-Size / mm
25 / 1	33.7 / 1.327	58 / 2.28	98 / 3.85	45 / 1.77	3/8*45-2
32 / 1 1/4	42.4 / 1.669	68 / 2.68	106 / 4.17	45 / 1.77	3/8*45-2
40 / 1 1/2	48.3 / 1.9	74 / 2.91	114 / 4.49	45 / 1.77	3/8*45-2
50 / 2	60.3 / 2.375	86 / 3.39	128 / 5.04	45 / 1.77	3/8*55-2
65 / 2 1/2	73 / 2.875	98 / 3.86	137 / 5.39	45 / 1.77	3/8*55-2
65 / 2 1/2	76.1 / 3	103 / 4.06	141 / 5.55	45 / 1.77	3/8*55-2
80 / 3	88.9 / 3.5	114 / 4.49	158 / 6.22	45 / 1.77	3/8*55-2
100 / 4	114.3 / 4.5	143 / 5.63	192 / 7.56	49 / 1.93	1/2*65-2
125 / 5	139.7 / 5.5	172 / 6.77	222 / 8.74	50 / 1.96	1/2*75-2
150 / 6	165.1 / 6.5	199 / 7.83	252 / 9.92	50 / 1.96	1/2*75-2
150 / 6	168.3 / 6.625	202 / 7.95	252 / 9.92	50 / 1.96	1/2*75-2
216 / 8	216.1 8.51	258 / 10.16	322 / 12.67	58 / 2.28	5/8*95-2
200 / 8	219.1 / 8.625	258 / 10.16	322 / 12.67	58 / 2.28	5/8*95-2
267 / 8	267.2 / 10.52	313 / 12.32	390 / 15.35	58 / 2.28	3/4*110-2
250 / 10	273 / 10.75	320 / 12.60	394 / 15.51	60 / 2.36	3/4*110-2
318 / 12	318.3 / 12.53	369 / 14.53	450 / 17.72	58 / 2.28	3/4*120-2
300 / 12	323.9 / 12.75	372 / 14.64	450 / 17.72	64 / 2.51	3/4*120-2
