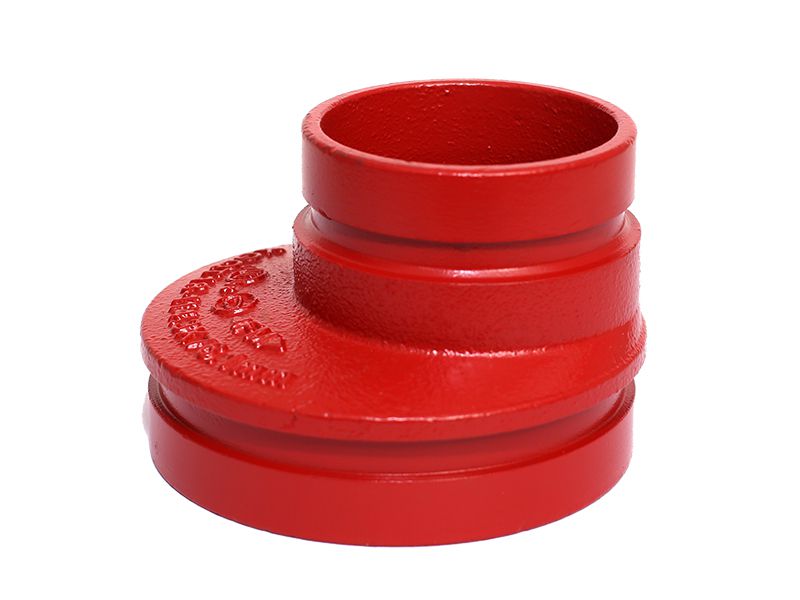

Grooved Eccentric Reducer

Grooved Eccentric Reducer

Grooved eccentric reducers are cone-shaped pipe fittings with grooves for connection, which reduce the size of the pipeline in an eccentric manner. This product achieves mechanical coupling by using a set of grooves at the ends of the pipes and fittings. Typically, a specialized tool is used to cut a groove at the pipe end, and then the joint is clamped onto the groove using bolts or a similar mechanism.

Features

  • Grooved eccentric reducers are made of ductile iron, stainless steel, or carbon steel, offering strong wear resistance and corrosion resistance.

  • Available in various sizes and pressure ratings, suitable for different applications.

  • Enables the connection of two pipes with different diameters.

  • Connects pipes to provide changes in direction and adapt sizes or components.

Recommended Applications

Grooved eccentric reducers are commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where the size of the pipeline needs to be reduced to accommodate changes in flow or pressure.

Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 1 1/4×1 inch~12×4 inch |DN32×25~DN300×100
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM/UL/CE certified
  • Coating
    Coating: epoxy/galvanized
  • Color
    Color: red/orange/white
  • Material
    Material: ductile iron
Content

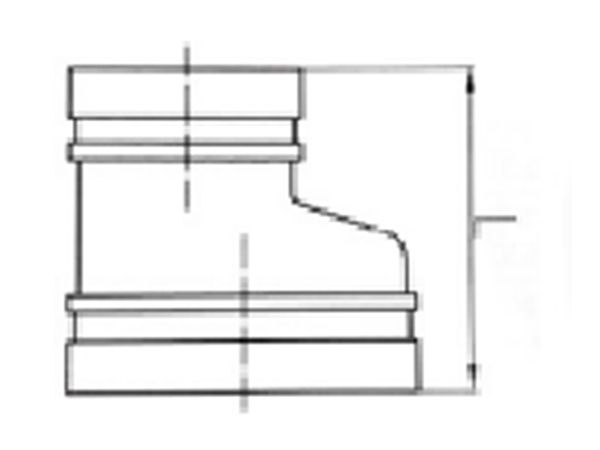

Nominal SizePipe ODDimensions
mm/inmm/inL mm/in
32x25 / 1 1/4x142.4x33.7 / 1.660x1.31564 / 2.51
40x25 / 11/2x148.3x33.7 / 1.900x1.31564 / 2.51
40x32 / 1 1/2×1 1/448.3x42.4 / 1.900x1.66064 / 2.51
50x25 / 2x160.3 x 33.7 / 2.375x1.31564 / 2.51
50x32 / 2x1 1/460.3x42.4 / 2.375x1.66064 / 2.51
50x40 / 2x1 1/2603x48.3 / 2.375x1.90064 / 2.51
65x25 / 2 1/2x173.0 x 33.7 / 2.875x1.31564 / 2.51
65x32 / 2 1/2x1 1/473.0x42.4 / 2.875x1.66064 / 2.51
65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90064 / 2.51
65x50 / 2 1/2x273.0 x 60.3 / 2.875x2.37564 / 2.51
65x32 / 2 1/2x1 1/476.1 x 42.4 / 3.000x1.66064 / 2.51
65x40 / 2 1/2x1 1/276.1x48.3 / 3.000x1.90064 / 2.51
65x50 / 2 1/2x276.1x60.3 / 3.000 x 2.37564 / 2.51
80x32 / 3x1 1/488.9x42.4 / 3.500x1.66055 / 2.17
80x40 / 3x1 1/288.9 x 48.3 / 3.500x1.90055 / 2.17
80x50 / 3x288.9 x 60.3 / 3.500x2.37555 / 2.17
80x65 / 3x2 1/288.9x76.1 / 3.500 x 3.00055 / 2.17
100x65 / 4x2 1/2108.0 x 76.1 / 4.250 x 3.00076 / 2.99
100x80 / 4x3108.0x88.9 / 4.250 x 3.50076 / 2.99
100x32 / 4x1 1/4114.3x42.4 / 4.500x1.66060 / 2.36
100x40 / 4x1 1/2114.3x48.3 / 4.500x1.90060 / 2.36
100x50 / 4x2114.3x60.3 / 4.500x2.37560 / 2.36
100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.00060 / 2.36
100x80 / 4x3114.3x88.9 / 4.500 x 3.50060 / 2.36
125x50 / 5x2139.7x60.3 / 5.500x2.37565 / 2.56
125x65 / 5x2 1/2139.7x76.1 / 5.500 x 3.00065 / 2.56
125x80 / 5x3139.7x88.9 / 5.500 x 3.50065 / 2.56
125x100 / 5x4139.7x114.3 / 5.500 x 4.50065 / 2.56
150x50 / 6x2159.0x60.3 / 6.250x2.37570 / 2.76
150x65 / 6x2 1/2159.0x76.1 / 6.250 x 3.00070 / 2.76
150x80 / 6x3159.0x88.9 / 6.250 x 3.50070 / 2.76
150x100 / 6x4159.0x108.0 / 6.250 x 4.25070 / 2.76
150x100 / 6x4159.0x114.3 / 6.250x4.50070 / 2.76
150x125 / 6x5159.0x133.0 / 6.250x5.25070 / 2.76
150x125 / 6x5159 0x139 7 / 6.250 x 5.50070 / 2.76
150x50 / 6x2165.1 x60.3 / 6.500 x 2.375102 / 4.01
150x65 / 6x2 1/2165.1x76.1 / 6.500 x 3.000102 / 4.01
150x80 / 6x3165.1x88.9 / 6.500 x 3.500102 / 4.01
150x100 / 6x4165.1x114.3 / 6.500x4.500102 / 4.01
150x125 / 6x5165.1x139.7 / 6.500x5.500102 / 4.01
150x50 / 6x2168.3 x 60.3 / 6.625x2.37570 / 2.76
150x65 / 6x2 1/2168.3x76.1 / 6.625 x 3.00070 / 2.76
150x80 / 6x3168.3 x 88.9 / 6.625x3.50070 / 2.76
150x100 / 6x4168.3x114.3 / 6.625x4.50070 / 2.76
150x125 / 6x5168.3x139.7 / 6.625 x 5.50070 / 2.76
200 x 50 / 8x2219.1x60.3 / 8.625x2.37585 / 3.35
200x65 / 8x2 1/2219.1x76.1 / 8 625x3.00085 / 3.35
200 x 80 / 8x3219.1x88.9 / 8.625x3.50085 / 3.35
200x100 / 8x4219.1 x 108.0 / 8.625x4.25085 / 3.35
200x100 / 8x4219.1 x 114.3 / 8.625x4.50085 / 3.35
200x125 / 8x5219.1 x 139.7 / 8.625 x 5.50085 / 3.35
200x150 / 8x6219.1 x 159.0 / 8.625x6.25085 / 3.35
200x150 / 8x6219.1 x 165.1 / 8.625x6.50085 / 3.35
200x150 / 8x6219.1 x 168.3 / 8.625x6.62585 / 3.35
