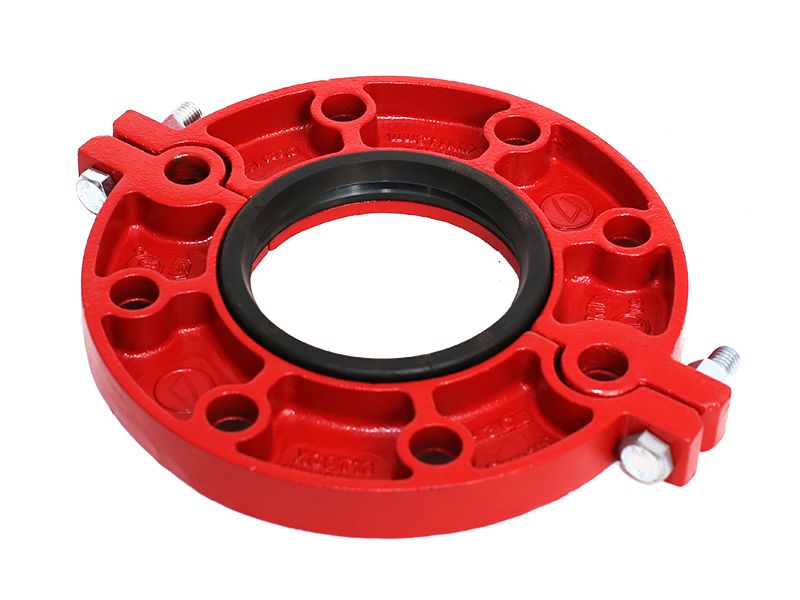

Grooved Split Flange PN16

A grooved split flange enables a direct transition between the flanged component and a grooved pipeline. During installation, the key of the split flange continuously adapts to the groove diameter, ensuring a tight fit against the bottom of the groove, resulting in a sturdy connection.

Recommended Applications

Grooved split flanges are primarily used in hydraulic machinery and are often paired with connecting pipes to facilitate efficient fluid flow and reliable connections.

Send Inquiry

Content

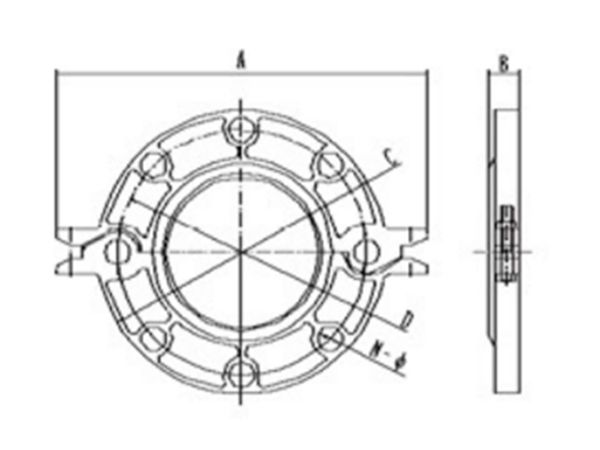

Nominal Size	Pipe OD.	Dimensions					Bolt / Nut
mm/in	mm/in	A mm/in	B mm/in	C mm/in	D mm/in	E mm/in	No.-Size mm
40 / 1 1/2	48.3 / 1.9	195 / 7.68	18.5 / 0.73	150 / 5.9	110 / 4.33	45.4 / 1.78	4-Φ16
50 / 2	60.3 / 2.375	220 / 8.66	18.5 / 0.73	165 / 6.5	125 / 4.92	57.5 / 2.26	4-Φ16
65 / 2 1/2	76.1 / 3	235 / 9.25	18.5 / 0.73	185 / 7.28	145 / 5.71	72.7 / 2.86	4-Φ16
80 / 3	88.9 / 3.5	255 / 10.04	18.5 / 0.73	195 / 7.68	160 / 6.3	85.5 / 3.37	8-Φ16
100 / 4	108 / 4.25	279 / 10.98	18.5 / 0.73	220 / 8.66	180 / 7.09	104.5 / 4.11	8-Φ16
100 / 4	114.3 / 4.5	279 10.98	18.5 0.73	224 8.82	180 7.09	110.5 4.35	8-Φ16
125 5	133 5.25	312 12.28	21.5 0.85	250 9.84	210 8.27	129.2 5.08	8-Φ 16
125 5	139.7 5.5	320 12.6	23 0.91	250 9.84	210 8.27	135.5 5.33	8-Φ 16
150 6	159 6.25	346 13.62	21.5 0.85	280 11	240 9.45	154.8 6.1	8-Φ20
150 6	165.1	346 13.62	21.5 0.85	280 11	240 9.45	160.8 6.33	8-Φ20
150 6	6.5	346 13.62	21.5 0.85	280 11	240 9.45	160.8 6.33	8-Φ20
150 6	168.3 6.625	346 13.62	24 0.94	280 11	240 9.45	164.3 6.47	8-Φ20
200 8	219.1 8.625	414.3 16.31	30 1.18	340 13.39	295 11.61	214.9 8.46	12-Φ20
250 10	273 10.75	480 18.9	25.5 1.00	405 15.94	355 13.98	268.9 10.59	12-Φ24
300 12	323.9 12.75	530.5 20.88	25.5 1	460 18.11	410 16.14	318.9 12.56	12-Φ24
