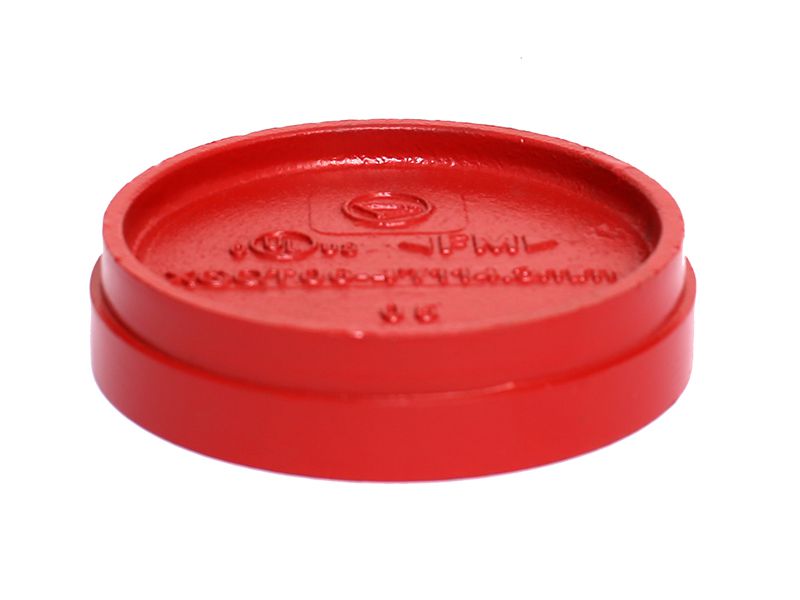

Grooved End Cap

A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

Send Inquiry

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN600
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy / galvanized
Color: red/orange/white etc.

Content

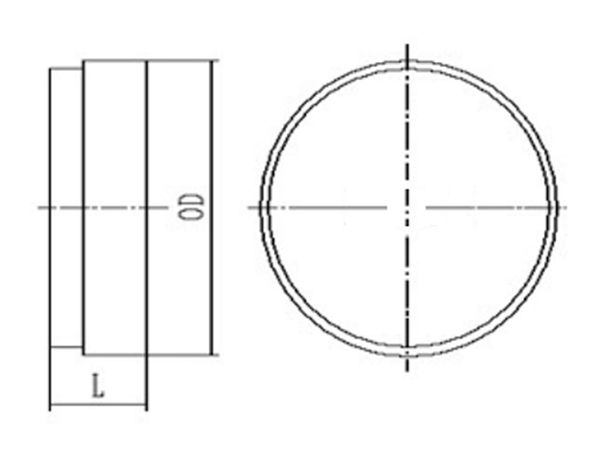

Nominal Size	Pipe OD	Dimensions
mm/in	mm/in	L mm/in
25 / 1	33.7 / 1.327	25 / 0.98
32 / 1 1/4	42.4 / 1.669	25 / 0.98
40 / 1 1/2	48.3 / 1.9	25 / 0.98
50 / 2	60.3 / 2.375	25 / 0.98
65 / 2 1/2	73 / 2.875	25 / 0.98
65 / 2 1/2	76.1 / 3	25 / 0.98
80 / 3	88.9 / 3.5	25 / 0.98
100 / 4	108 / 4.25	25 / 0.98
100 / 4	114.3 / 4.5	26 / 1.02
125 / 5	133 / 5.25	25 / 0.98
125 / 5	139.7 / 5.5	26 / 1.02
125 / 5	141.3 / 5.563	26 / 1.02
150 / 6	159 / 6.25	26 / 1.02
150 / 6	165.1 / 6.5	26 / 1.02
150 / 6	168.3 / 6.625	26 / 1.02
200 / 8	219.1 / 8.625	30 / 1.18
250 / 10	273 / 10.75	32 / 1.26
