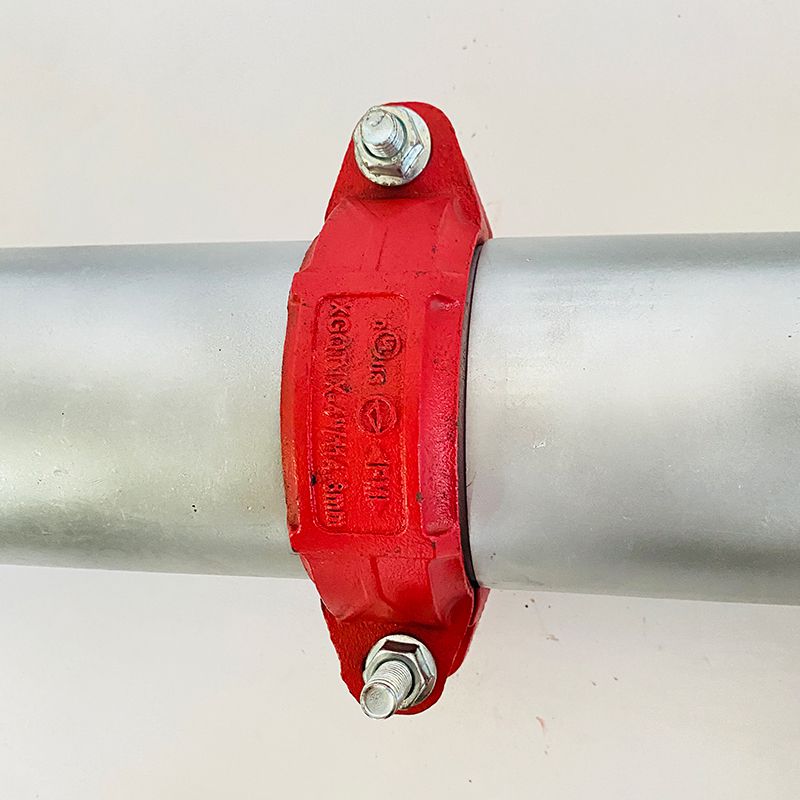

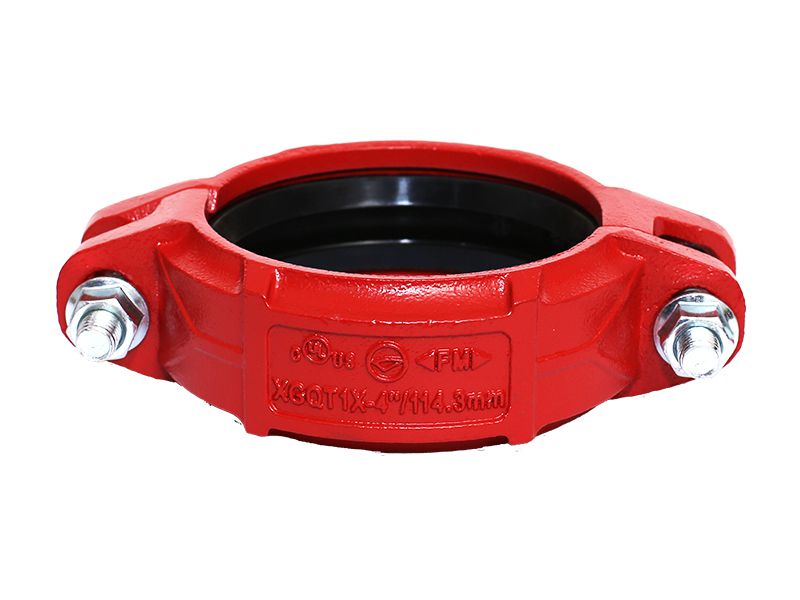

Angle-Pad Rigid Coupling

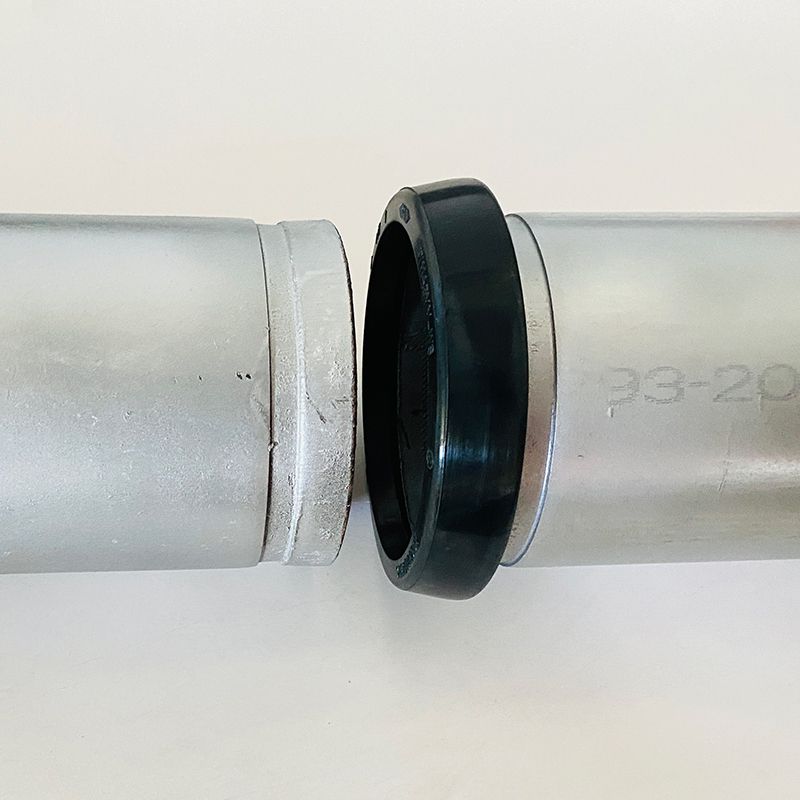

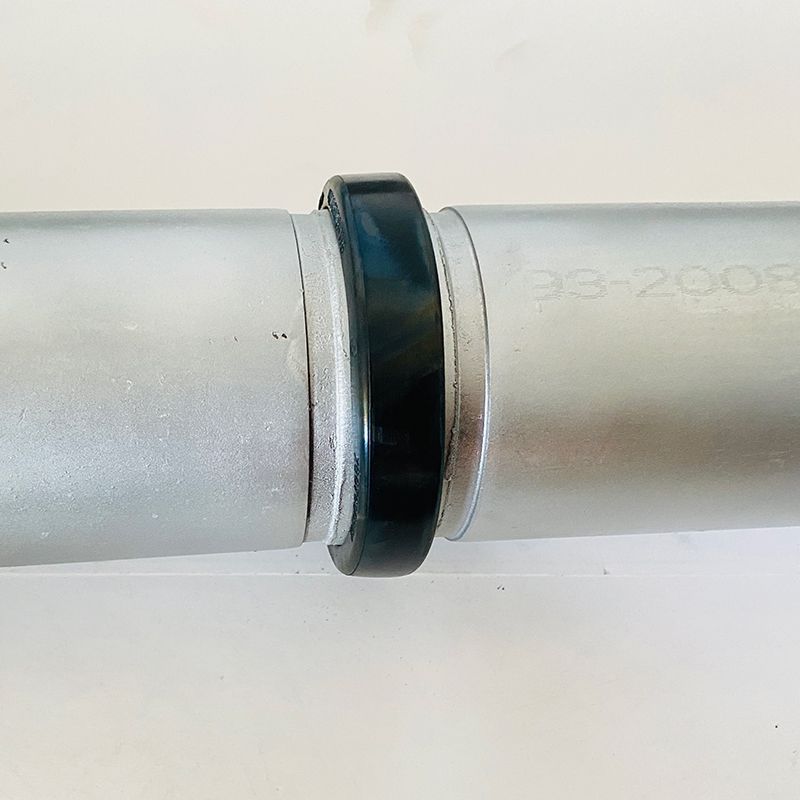

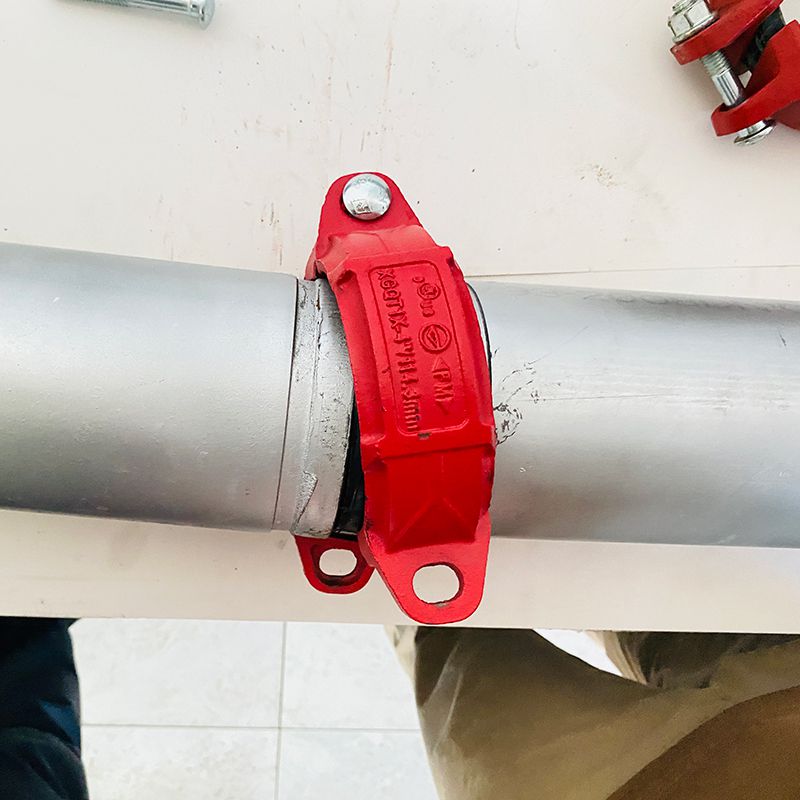

Angle-pad rigid coupling is a standard rigid coupling with an angled bolt-pads design, suitable for medium-pressure piping services. This coupling is designed to achieve angular and axial stiffness by firmly clamping in the groove base.

Send Inquiry

Content

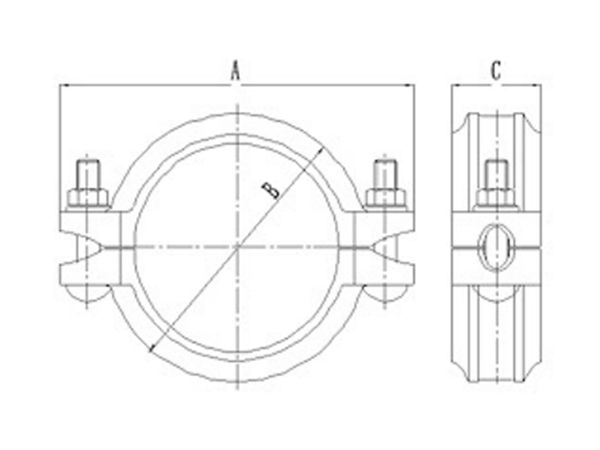

Nominal Size	Pipe OD	Dimensions			Bolt Size
mm/in	mm/in	mm/in			No.-Size mm
mm/in	mm/in	A mm	B mm	C mm	No.-Size mm
25/1	33.7/1.327	58/2.28	98/3.85	45/1.77	3/8*45-2
32/(1 1/4)	42.4/1.669	68/2.68	106/4.17	45/1.77	3/8*45-2
40/(1 1/2)	48.3/1.9	74/2.91	114/4.49	45/1.77	3/8*45-2
50/2	60.3/2.375	86/3.39	128/5.04	45/1.77	3/8*55-2
65/(2 1/2)	73/2.875	98/3.86	137/5.39	45/1.77	3/8*55-2
65/(2 1/2)	76.1/3	103/4.06	141/5.55	45/1.77	3/8*55-2
80/3	88.9/3.5	114/4.49	158/6.22	45/1.77	3/8*55-2
100/4	114.3/4.5	143/5.63	192/7.56	49/1.93	1/2*65-2
125/5	139.7/5.5	172/6.77	222/8.74	50/1.96	1/2*75-2
150/6	165.1/6.5	199/7.83	252/9.92	50/1.96	1/2*75-2
150/6	168.3/6.625	202/7.95	252/9.92	50/1.96	1/2*75-2
216/8	216.1 8.51	258/10.16	322/12.67	58/2.28	5/8*95-2
200/8	219.1/8.625	258/10.16	322/12.67	58/2.28	5/8*95-2
267/8	267.2/10.52	313/12.32	390/15.35	58/2.28	3/4*110-2
250/10	273/10.75	320/12.60	394/15.51	60/2.36	3/4*110-2
318/12	318.3/12.53	369/14.53	450/17.72	58/2.28	3/4*120-2
300/12	323.9/12.75	372/14.64	450/17.72	64/2.51	3/4*120-2
