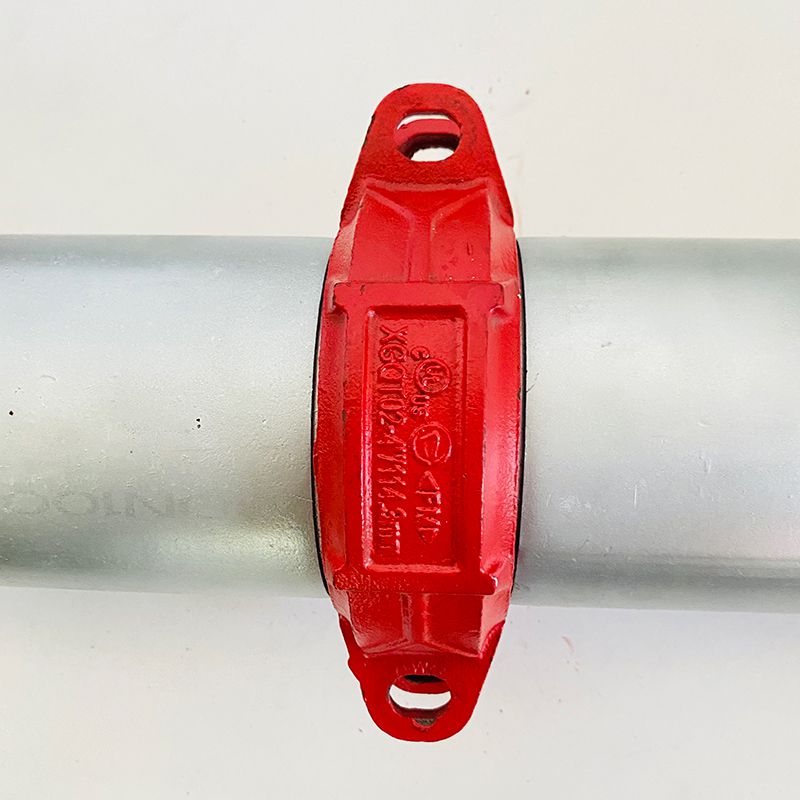

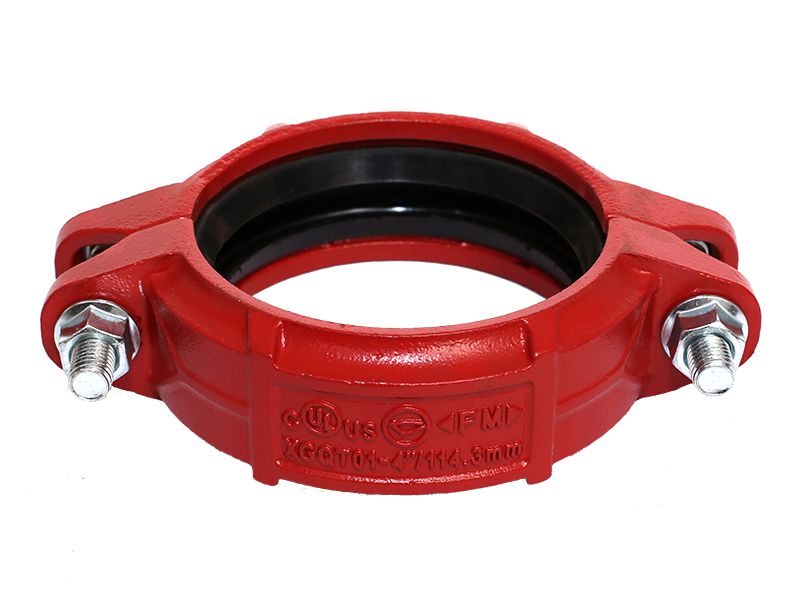

Grooved Rigid Coupling

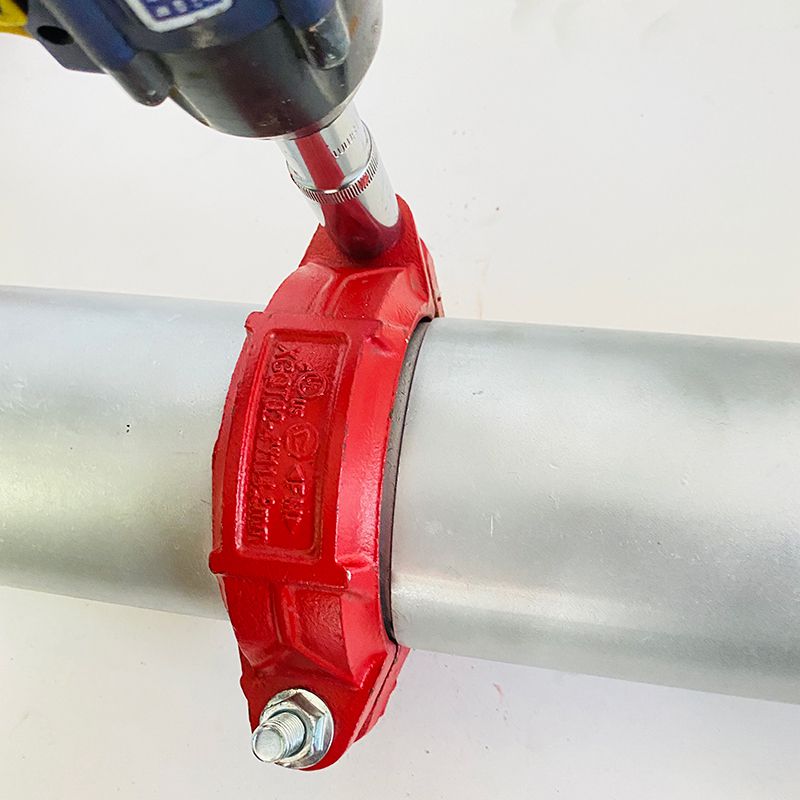

Grooved rigid coupling is a pipe fitting used to connect two pipes or equipment in various applications. It offers easy and fast installation without the need for any special tools or skills.

Features

The grooved rigid coupling allows for flexible and quick installation without the use of special tools.
High flexibility: the use of grooved couplings provides flexibility in piping systems, allowing for angular and axial movement between connected pipes or equipment.
Strong versatility: the ductile iron grooved fittings is suitable for connecting pipes made of different materials, including steel, copper, plastic, and stainless steel.

Recommended Applications

Grooved rigid coupling is widely used in various piping systems made of different materials, such as water supply, drainage, HVAC, and other systems requiring pipe connections.

Send Inquiry

Key Specifications

Available sizes: 1~12 inch | DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy/galvanized
Color: red/orange/white, etc.
Material: ductile iron

Content

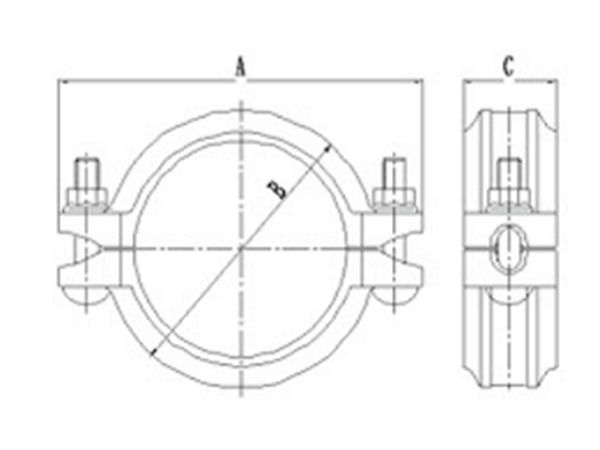

Nominal Size	Pipe OD	Dimensions			Bolt Size
mm/in	mm/in	mm/in			No.-Size mm
mm/in	mm/in	A mm/in	B mm/in	C mm/in	No.-Size mm
25/1	33.7/1.327	58/2.28	98/3.85	45/1.77	3/8*45-2
32/(1 1/4)	42.4/1.669	68/2.68	106/4.17	45/1.77	3/8*45-2
40/(1 1/2)	48.3/1.9	74/2.91	114/4.49	45/1.77	3/8*45-2
50/2	60.3/2.375	86/3.39	128/5.04	45/1.77	3/8*55-2
65/(1 1/2)	73/2.875	98/3.86	137/5.39	45/1.77	3/8*55-2
65/(1 1/2)	76.1/3	98/3.86	141/5.55	45/1.77	3/8*55-2
80/3	88.9/3.5	112/4.41	155/6.10	45/1.77	3/8*55-2
100/4	108/4.25	140/5.51	189/7.44	50/1.96	1/2*65-2
100/4	114.3/4.5	140/5.51	192/7.56	50/1.96	1/2*65-2
125/5	133/5.25	164/6.46	216/8.5	50/1.96	1/2*75-2
125/5	139.7/5.5	166/6.54	217/8.54	50/1.96	1/2*75-2
125/5	141.3/5.563	173/6.81	225/8.86	50/1.96	1/2*75-2
150/6	159/6.25	193/7.59	246/9.69	50/1.96	1/2*75-2
150/6	165.1/6.5	199/7.83	252/9.92	50/1.96	1/2*75-2
150/6	168.3/6.625	197/7.76	244/9.61	48/1.89	1/2*75-2
200/8	219.1/8.625	255/10.04	322/12.67	58/2.28	5/8*95-2
250/10	273/10.75	318/12.51	400/15.74	62/2.44	3/4*110-2
300/12	323.9/12.75	372/14.64	454/17.87	64/2.51	3/4*120-2
