Grooved Equal Tee - HT Casting

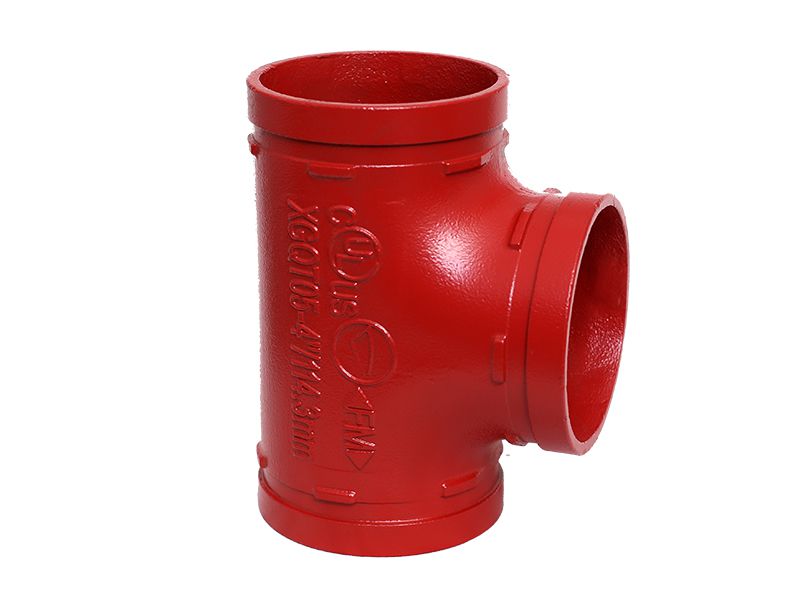

Grooved Equal Tee

Grooved equal tee has the same size for both the main and branch pipes, with the branch pipe perpendicular to the main pipe. The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.

Recommended Applications

Grooved equal tee is suitable for liquid and gas transport systems such as water, air, and oil piping systems.

Send Inquiry

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy/galvanized
Color: red/orange/white, etc.
Material: ductile iron

Content

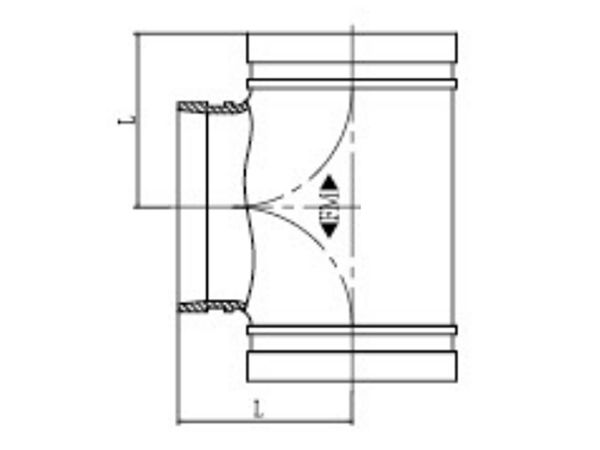

Nominal size	Pipe OD.	Dimensions
mm/in	mm/in	L mm/in
25 / 1	33.7 / 1.327	57 / 2.24
32 / 1 1/4	42.4 / 1.669	60 / 2.36
40 / 1 1/2	48.3 / 1.9	60 / 2.36
50 / 2	60.3 / 2.375	70 / 2.76
65 / 2 1/2	73 / 2.875	76 / 2.99
65 / 2 1/2	76.1 / 3	76 / 2.99
80 / 3	88.9 / 3.5	86 / 3.39
100 / 4	108 / 4.25	102 / 4.02
100 / 4	114.3 / 4.5	102 / 4.02
125 / 5	133 / 5.25	121 / 4.76
125 / 5	139.7 / 5.5	121 / 4.76
125 / 5	141.3 / 5.563	121 / 4.76
150 / 6	159 / 6.25	140 / 5.51
150 / 6	165.1 / 6.5	140 / 5.51
150 / 6	168.3 / 6.625	140 / 5.51
200 / 8	219.1 / 8.625	175 / 6.89
250 / 10	273 / 10.75	215 / 8.46
