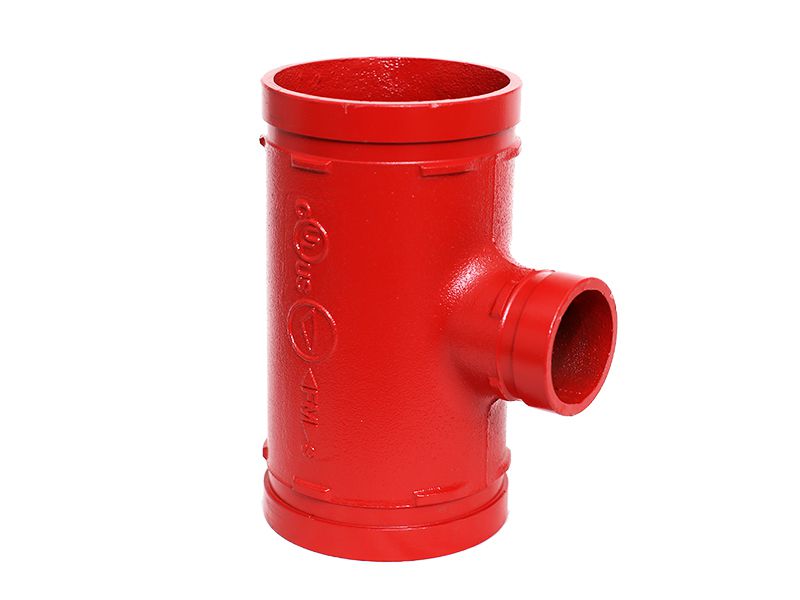

Grooved Reducing Tee

Grooved Reducing Tee

Grooved reducing tee, named for its T-shaped configuration, has a branch outlet with a different size from the main outlet. Each end of the tee has a groove, allowing it to be quickly and easily connected to the pipeline using couplings or fittings.

Recommended Applications

  • Grooved reducing tee is suitable for piping systems in industries such as petroleum, chemical, oil, natural gas, and urban construction, like heating pipeline systems, drainage and water supply systems, and more.

  • Connects pipe, provides changes in direction, and adapts to sizes or components.

Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM/UL/CE certified
  • Coating
    Coating: epoxy/galvanized
Content

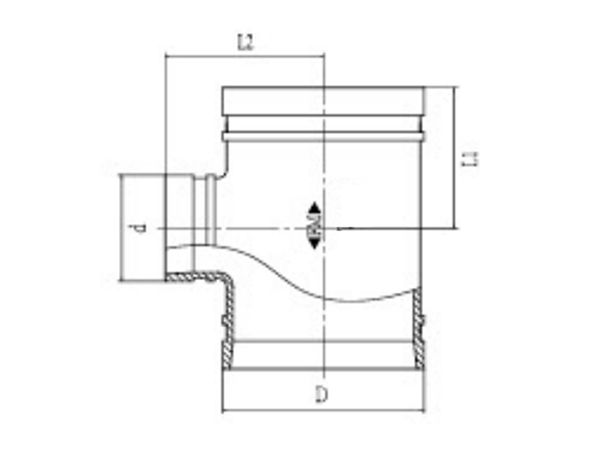

Nominal size mm/inPipe OD.Dimensions
mm/inL1mm/inL2mm/in
50x25 / 2x160.3 x 33.7 / 2.375x1.31570 / 2.7670 / 2.76
50x32 / 2x1 1/460.3 x 42.4 / 2.375x1.66070 / 2.7670 / 2.76
50x40 / 2x1 1/260.3 x 48.3 / 2.375 x 1.90070 / 2.7670 / 2.76
65x32 / 2 1/2x1 1/473.0 x 42.4 / 2.875x1.66076 / 2.9976 / 2.99
65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90076 / 2.9976 / 2.99
65x50 / 2 1/2 x 273.0 x 60.3 / 2.875x2.37576 / 2.9976 / 2.99
65x32 / 2 1/2X1 1/476.1 x42.4 / 3.000x1.66076 / 2.9976 / 2.99
65x40 / 2 1/2X1 1/276.1x48.3 / 3.000x1.90076 / 2.9976 / 2.99
65x50 / 2 1/2X276.1x60.3 / 3.000x2.37595 / 3.7495 / 3.74
80x50 / 3x288.9 x 60.3 / 3.500x2.375108 / 4.25108 / 4.25
80x65 / 3x2 1/288.9 x 76.1 / 3 500x3000108 / 4.25108 / 4.25
100x65 / 4x2 1/2108.0x76.1 / 4.250 x 3.000127 / 5127 / 5
100x80 / 4x3108.0 x 88.9 / 4.250 x 3.500127 / 5127 / 5
100x50 / 4x2114.3x60.3 / 4.500x2.375127 / 5127 / 5
100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.000127 / 5127 / 5
100x80 / 4x3114.3x88.9 / 4.500x3.500127 / 5127 / 5
125x65 / 5x2 1/2133.0 x 76.1 / 5.250 x 3.000122 / 4.8122 / 4.8
125x 100 / 5x4133.0x108.0 / 5 250 x 4 250122 / 4.8122 / 4.8
125x50 / 5x2139.7x60.3 / 5.500 x 2.375110 / 4.33110 / 4.33
125x65 / 5x2 1/2139.7 x 76.1 / 5.500 x 3.000110 / 4.33110 / 4.33
125x80 / 5x3139.7 x 88.9 / 5.500 x 3.500110 / 4.33110 / 4.33
125x100 / 5x4139.7x114.3 / 5.500 x 4.500110 / 4.33110 / 4.33
150x65 / 6x2 1/2159.0x76.1 / 6.250 x 3.000122 / 4.8122 / 4.8
150x80 / 6x3159.0x88.9 / 6.250 x 3.500122 / 4.8122 / 4.8
150x100 / 6x4159.0x108.0 / 6.250 x 4.250122 / 4.8122 / 4.8
150x 100 / 6x4159.0 x 114.3 / 6.250 x 4.500122 / 4.8122 / 4.8
150x50 / 6x2165.1 x 60.3 / 6.500x2.375165 / 6.5165 / 6.5
150x65 / 6x2 1/2165.1 x 76.1 / 6.500 x 3.000165 / 6.5165 / 6.5
150x80 / 6x3165.1 x88.9 / 6.500x2.376165 / 6.5165 / 6.5
150x50 / 6x2168.3 x 60.3 / 6.625 x 2.376140 / 5.51140 / 5.51
150x65 / 6x2 1/2168.3x73 / 6.625 x 2.874140.00140.00
150x65 / 6x2 1/2168.3 x 76.1 / 6.625x3.000140 / 5.51140 / 5.51
150x80 / 6x3168.3 x 88.9 / 6.625 x 3.500140 / 5.51140 / 5.51
150x100 / 6x4168.3x114.3 / 6.625 x 4.500140 / 5.51140 / 5.51
200 x 65 / 8 x 2 1/2219.1 x 76.1 / 8.625 x 3.000197 / 7.76197 / 7.76
200x80 / 8x3219.1 x88.9 / 8.625 x 3.500197 / 7.76197 / 7.76
200x100 / 8x4219.1 x 114.3 / 8.625 x 4.500197 / 7.76197 / 7.76
200x125 / 8x52191x139.7 / 8.625 x 5.500197 / 7.76197 / 7.76
200x150 / 8x6219.1x166.1 / 8.62S x 6.500197 / 7.76197 / 7.76
200x 150 / 8x6219.1x168.3 / 8.625 x 6.625197 / 7.76197 / 7.76
250x100 / 10x4273.0x114.3 / 10.750 x 4.500229 / 9.02229 / 9.02
250x125 / 10x5273.0 x 139.7 / 10.750x5.500229 / 9.02229 / 9.02
250x 150 / 10x6273.0 x 165.1 / 10.750x6.500229 / 9.02229 / 9.02
