Threaded Reducing Tee

Threaded Reducing Tee

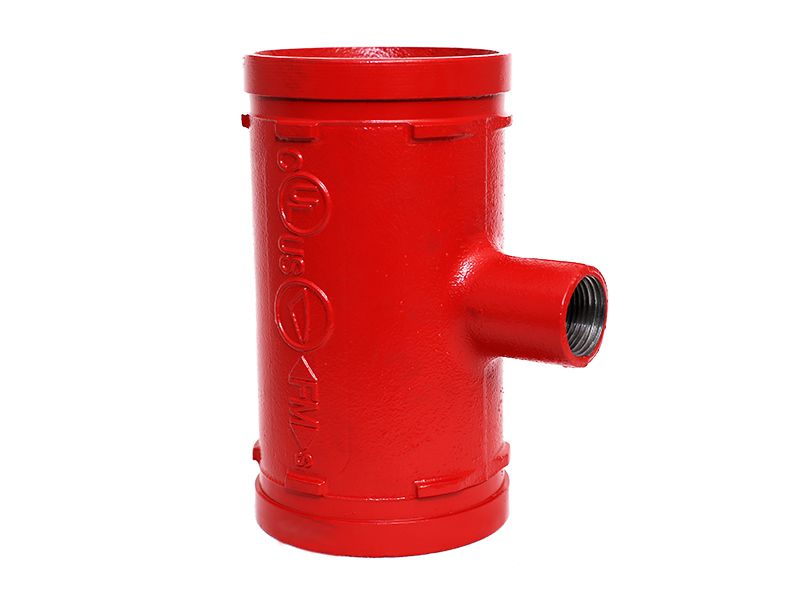

Threaded reducing tee is a type of tee fitting where the size of branch pipe is smaller than the main pipe, and the branch connection is threaded. They are typically made from materials such as stainless steel, brass, or PVC, depending on the application and type of fluid being transported. Selecting the correct size and material for threaded reducing tees is crucial to ensure the integrity and lifespan of pipeline systems.

Recommended Applications

  • Threaded reducing tee is suitable for pipeline systems in industries such as petroleum, chemical, and natural gas, including wastewater treatment equipment and natural gas transport systems.

  • Connects pipe, provides changes in direction, and adapts to sizes or components.

Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM/UL/CE certified
  • Coating
    Coating: epoxy /galvanized
  • Color
    Color: red/orange/white, etc.
Content

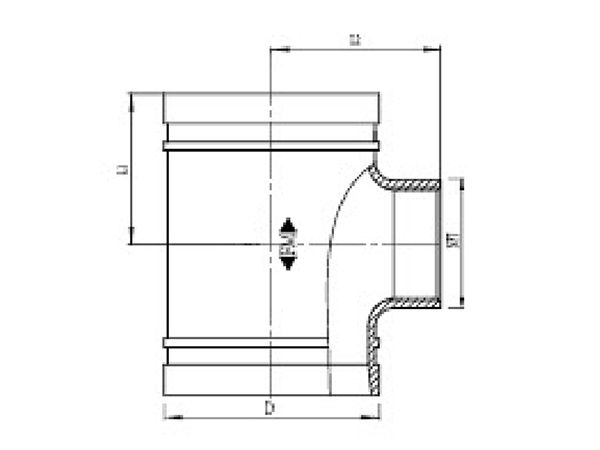

Nominal SizePipe OD.Dimensions
 mm/inL1 mm/inL2mm/in
50x25 / 2x160.3x33.7 / 2.375x1.31570 / 2.7670 / 2.76
50x32 / 2x11/460.3 x 42.4 / 2.375x1.66070 / 2.7670 / 2.76
50x40 / 2x11/260.3x48.3 / 2.375x1.90070 / 2.7670 / 2.76
65x25 / 2 1/2x173.0 x 33.7 / 2.875x1.31576 / 2.9976 / 2.99
65x32 / 2 1/2x1 1/473.0x42.4 / 2.875x1.66076 / 2.9976 / 2.99
65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90076 / 2.9976 / 2.99
65x50 / 2 1/2x273.0 x 60.3 / 2.875 x 2.37576 / 2.9976 / 2.99
65x25 / 2 1/2x176.1x33.7 / 3.000x1.31595 / 3.7495 / 3.74
65x32 / 2 1/2x1 1/476.1x42.4 / 3.000x1.66095 / 3.7495 / 3.74
65x40 / 2 1/2x1 1/276.1x48.3 / 3.000x1.90095 / 3.7495 / 3.74
65x50 / 2 1/2x276.1x60.3 / 3.000 x 2.37595 / 3.7495 / 3.74
80x25 / 3x188.9 x 33.7 / 3.500x1.315108 / 4.25108 / 4.25
80x32 / 3x11/488.9x42.4 / 3.500x1.660108 / 4.25108 / 4.25
80x40 / 3x1 1/288.9 x 48.3 / 3.500x1.900108 / 4.25108 / 4.25
80x50 / 3x288.9 x 60.3 / 3.500 x 2.375108 / 4.25108 / 4.25
80x65 / 3x2 1/288.9 x 76.1 / 3.500 x 3.000108 / 4.25108 / 4.25
100x65 / 4x2 1/2108.0 x 76.1 / 4.250x3.000127 / 5127 / 5
100x80 / 4x3108.0 x 88.9 / 4.250x3.500127 / 5127 / 5
100x25 / 4x1114.3x33.7 / 4.500 x 1.315127 / 5127 / 5
100x32 / 4x1 1/4114.3x42.4 / 4.500x1.660127 / 5127 / 5
100x40 / 4x1 1/2114.3x48.3 / 4.500x1.900127 / 5127 / 5
100x50 / 4x2114.3x60.3 / 4.500x2.375127 / 5127 / 5
100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.000127 / 5127 / 5
100x80 / 4x3114.3x88.9 / 4.500 x 3.500127 / 5127 / 5
125x25 / 5x1139.7 x 33.7 / 5.500x1.315110 / 4.33110 / 4.33
125x32 / 5x1 1/4139.7x42.4 / 5.500x1.660110 / 4.33110 / 4.33
125x40 / 5x 1 1/2139.7x48.3 / 5.500 x1.900110 / 4.33110 / 4.33
125x50 / 5x2139.7x60.3 / 5.500 x 2.375110 / 4.33110 / 4.33
125x65 / 5 x 2 1/2139.7x76.1 / 5.500 x 3.000110 / 4.33110 / 4.33
125x80 / 5x3139.7x88.9 / 5.500 x 3.500110 / 4.33110 / 4.33
150x25 / 6x1165.1x33.7 / 6.500x1.315165 / 6.5165 / 6.5
150x32 / 6x1 1/4165.1x42.4 / 6.500x1.660165 / 6.5165 / 6.5
150x40 / 6x1 1/2165.1x48.3 / 6.500x1.900165 / 6.5165 / 6.5
150x50 / 6x2165.1x60.3 / 6.500x2.375165 / 6.5165 / 6.5
150x65 / 6x2 1/2165.1x76.1 / 6.500x3.000165 / 6.5165 / 6.5
150x80 / 6x3165.1x889 / 6.500x3.500165 / 6.5165 / 6.5
150x 100 / 6x4165.1x114.3 / 6.500x4.500165 / 6.5165 / 6.5
150x25 / 6x1168.3 x 33.7 / 6.625x1.315140 / 5.51140 / 5.51
150x32 / 6x1 1/4168.3x42.4 / 6.625x1.660140 / 5.51140 / 5.51
150x40 / 6x11/2168.3 x 48.3 / 6.625 x1.900140 / 5.51140 / 5.51
150x50 / 6x2168.3 x 60.3 / 6.625x2.375140 / 5.51140 / 5.51
