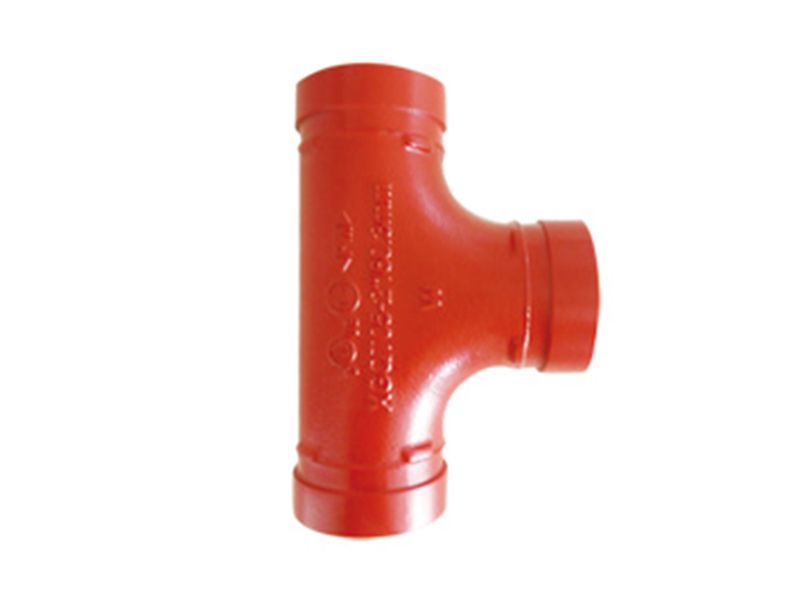

Grooved Long Radius Equal Tee

Grooved long radius equal tee is a type of tee fitting where the main and branch pipe have the same size. The neck of the long radius equal tee is longer compared to a standard equal tee. The branch pipe is perpendicular to the main pipe and the grooved end is connected to the pipe using couplings to provide changes in flow direction.

Recommended Applications

Grooved long radius equal tee is suitable for various industrial pipeline systems, such as chemical piping systems, deep-sea oil well piping systems, and more.
Connects pipe, provides changes in direction, and adapts to sizes or components

Send Inquiry

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy /galvanized
Color: red/orange/white, etc.

Content

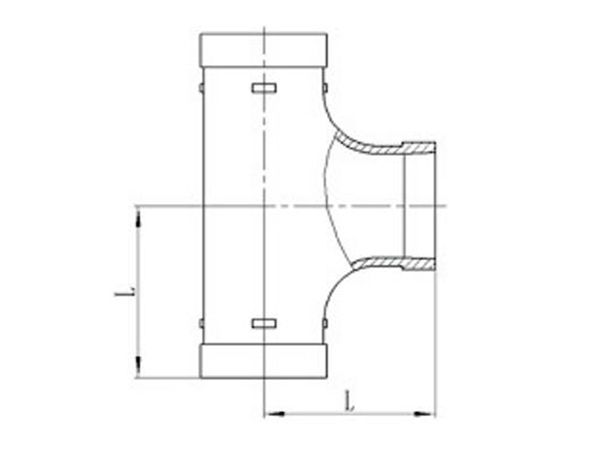

Nominal Size	Pipe O.D.	Dimensions
mm/in	mm/in	L mm/in
25 / 1	33.7 / 1.327	70 / 2.76
32 / 1 1/4	42.4 / 1.669	70 / 2.76
40 / 1 1/2	48.3 / 1.9	70 / 2.76
50 / 2	60.3 / 2.375	82 / 3.23
65 / 2 1/2	73 / 2.875	95 / 3.74
65 / 2 1/2	76 / 3	95 / 3.74
80 / 3	88.9 / 3.5	108 / 4.25
100 / 4	108 / 4.25	127 / 5
100 / 4	114.3 / 4.5	127 / 5
125 / 5	133 / 5.25	140 / 5.51
125 / 5	139.7 / 5.5	140 / 5.51
125 / 5	141.3 / 5.563	140 / 5.51
150 / 6	159 / 6.25	165 / 6.5
150 / 6	165.1 / 6.5	165 / 6.5
150 / 6	168.3 / 6.625	165 / 6.5
200 / 8	219.1 / 8.625	197 / 7.76
250 / 10	273 / 10.75	229 / 9.02
300 / 12	323.9 / 12.75	254 / 10
