Grooved Bullhead Tee

Grooved Bullhead Tee

Grooved bullhead tee is a type of tee fitting where the size of branch pipe is larger than the main pipe. This grooved tee is used to connect pipes, change the directions of pipeline, and adjust the size of components.

Recommended Applications

Grooved bullhead tee is suitable for piping systems in industries such as chemical, petroleum, natural gas, water supply and gas supply, heat transfer, and more, such as chemical piping systems, deep-sea oil well piping systems, and more.

Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 1 inch~12 inch |DN25~DN300
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM/UL/CE certified
  • Coating
    Coating: epoxy /galvanized
  • Color
    Color: red/orange/white, etc.
Content

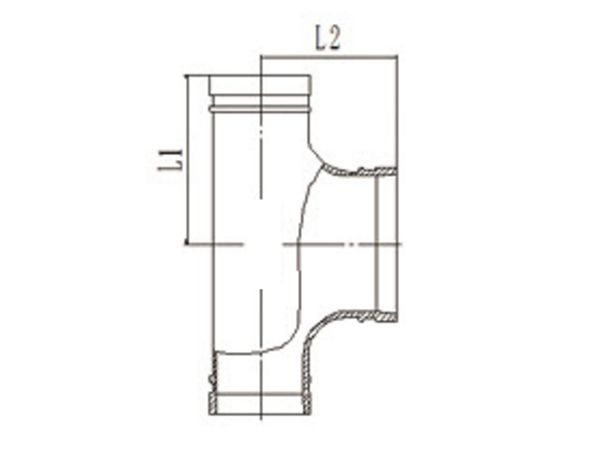

Nominal SizePipe O.D. mm/inDimension mm
L1L2
mm/inmm/inmm/inmm/in
50*50*65 / 2*2*2 1/260.3*60.3*73 / 2.375*2.375*2.8759583
50*50*80 / 2*2*360.3*60.3*88.9 / 2.375*2.375*3.510895
50*50*100 / 2*2*460.3*60.3*114.3 / 2.375*2.375*4.5127102
65*65*80 / 2 1/2*2 1/2*373*73*88.9 / 2.875*2.875*3.510895
65*65*100 / 2 1/2*2 1/2*473*73*114.3 / 2.875*2.875*4.5127102
65*65*80 / 2 1/2*2 1/2*376*76*88.9 / 3*3*3.510895
65*65*100 / 2 1/2*2 1/2*476*76*114.3 / 3*3*4.5127102
80*80*100 / 2 1/2*2 1/2*488.9*88.9*114.3 / 2.875*2.875*4.5127102
100*100*150 / 4*4*6114.3*114.3*150 / 4.5*4.5*6.625165127
125*125*200 / 5*5*8141.3*141.3*219.1 / 5.563*5.563*8.625197140
150*150*200 / 6*6*8168.3*168.3*219.1 / 6.625*6.625*8.625197165
