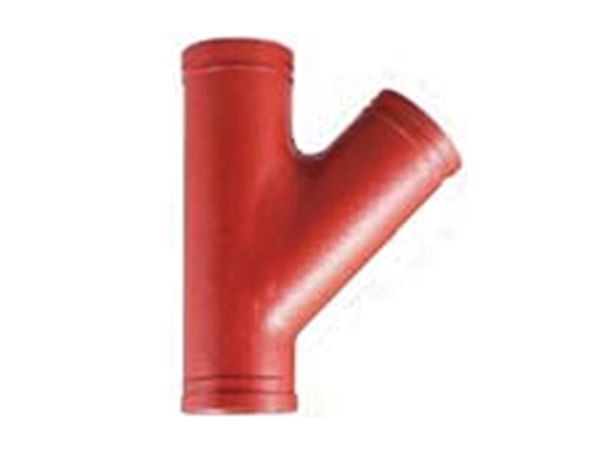

Grooved lateral tee is a type of tee fitting with a specified angle between the branch pipe and the main pipe, allowing for a change in the direction of the main pipe.

Recommended Applications

Grooved lateral tee is suitable for piping systems in industries such as firefighting, marine, oil and gas transportation, petrochemical industry, industrial piping, water supply and drainage engineering, and more.
Connects pipe, provides the change in direction, and accommodates to sizes or components.

Certification

Certification

Certification

Certification

Send Inquiry

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM/UL/CE certified
Coating: epoxy /galvanized
Color: red/orange/white, etc.

Content

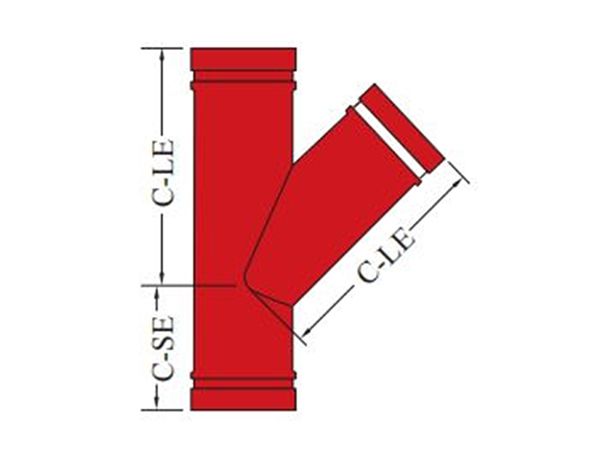

Nominal Size	Pipe O.D.	C-LE	C-SE
mm/in	mm/in	mm/in	mm/in
50 / 2	60.3 / 2.375	178 7.00	70 / 2.75
65 / 2 1/2	73 / 2.875	197 7.75	76 / 3.00
65 / 2 1/2	76.1 / 3	197 7.75	76 / 3.00
80 / 3	88.9 / 3.5	216 8.50	83 / 3.25
100 / 4	114.3 / 4.5	267 10.50	95 / 3.75
125 / 5	133 / 5.25	318 12.50	102 / 4.00
125 / 5	139.7 / 5.5	318 12.50	102 / 4.00
150 / 6	165.1 / 6.5	356 14.00	114 / 4.50
200 / 8	219.1 / 8.625	457 18.00	152 / 6.00
250 / 10	273 / 10.75	521 20.50	165 / 6.50
300 / 12	323.9 / 12.75	584 23.00	178 / 7.00
