Mechanical Tee Grooved Outlet

Mechanical Tee Grooved Outlet

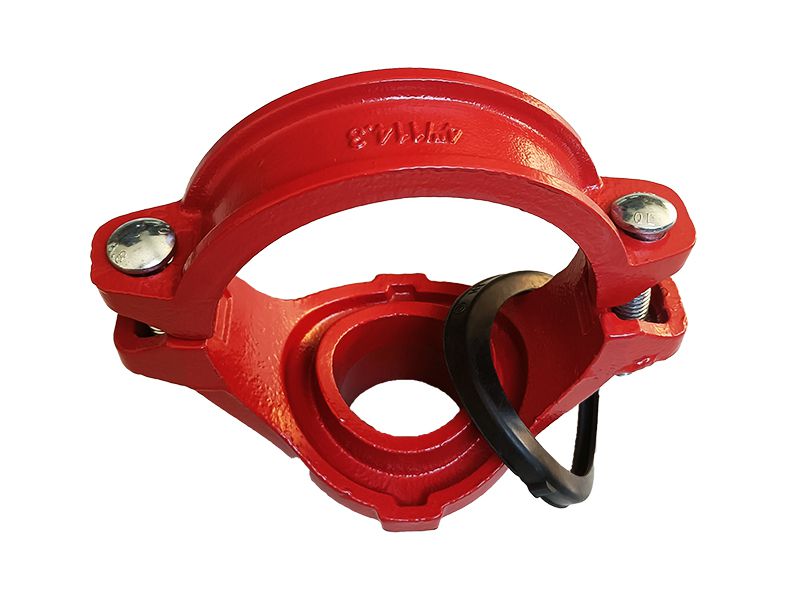

Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection. The self-sealing structure of the gasket ensures permanent sealing. During field operations, mechanical tees can be precisely installed on the pipeline to ensure the accuracy of the branch outlet connection.

Features

  • Mechanical tee grooved outlet provides an additional grooved outlet in existing piping.

  • For new construction, using of a mechanical tee eliminates the need for reducing tees.

  • The mechanical tee may be easily converted into a cross when necessary.

Recommended Applications

Mechanical tee grooved outlet are suitable for grooved piping systems, such as fire protection systems and sprinkler piping systems.


Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM/UL/CE certified
  • Coating
    Coating: epoxy/galvanized
  • Material
    Material: ductile iron
Content

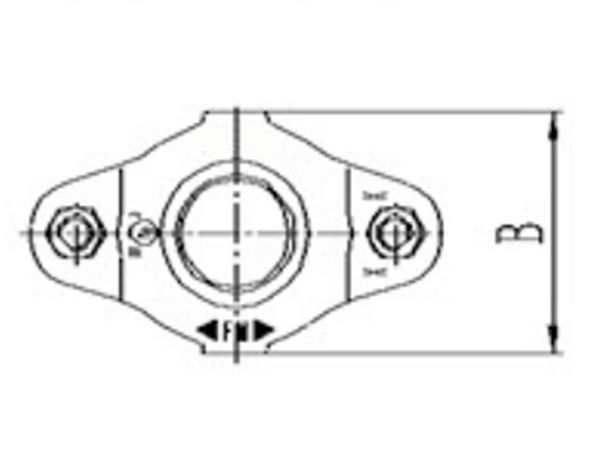

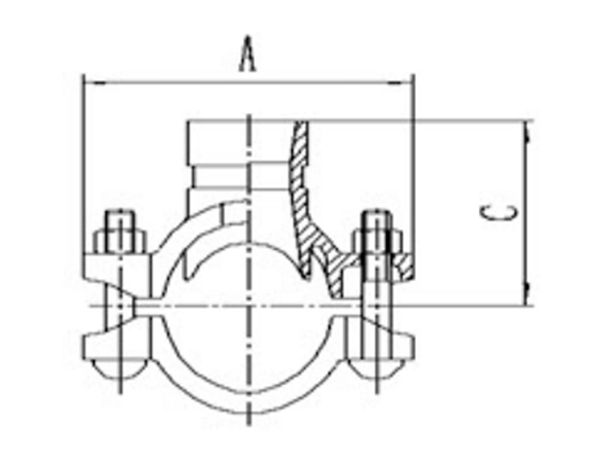

Nominal SizePipe OD.Hole DiaDimensionsBolt Size
mm/inmm/in A mmB mmC mmD mm
50x25 / 2x160x33.7 / 2.375 x 1.3338 / 1.496118 / 4.6574 / 2.9168 / 2.6840 / 1.57M10x55-2
50x32 / 2x1 1/460.3x42.4 2.375 x 1.66045 / 1.77118 / 4.6574 / 2.9168 / 2.6840 / 1.57M10x55-2
50x40 / 2x1 1/260.3x48.3 2.375 x 1.90045 / 1.77118 / 4.6574 / 2.9168 / 5 2.740 / 1.57M10x55-2
65x25 / 2 1/2x173x33.7 / 2.874 x 1.3338 / 1.496132 / 5.19774 / 2.9175 / 2.95347 / 1.850M12×70-2
65x32 / 2 1/2x1 1/473x42.4 / 2.874 x1.66051 / 2.01132 / 5.19784 / 3.3175 / 2.95347 / 1.850M12×70-2
65x40 / 2 1/2x1 1/273x48.3 / 2.874 x 1.90051 / 2.01132 / 5.19784 / 3.3175 / 2.95347 / 1.850M12×70-2
65x32 / 2 1/2x1 1/476.1 x42.4 3.000x1.66051 / 2.01135 / 5.3184 / 3.3178 / 3.0748 / 1.89M 12x70-2
65x40 / 2 1/2x1 1/276.1x48.3 3.000x1 90051 / 2.01135 / 5.3184 / 3.3178 / 3.0748 / 1.89M12x70-2
65x50 / 2 1/2x276x60 / 3.000x2.37551 / 2.01135 / 5.3184 / 3.3178 / 3.0748 / 1.89M12x70-2
80x25 / 3x189x33 / 3.500x1.3338 / 1.496146 / 5.7574 / 2.9183 / 3.26855 / 2.17M12x70-2
80x32 / 3x1 1/488.9x42.4 3.500x1.66051 / 2.01146 / 5.7586 / 3.3985 / 3.3555 / 2.17M12x70-2
80x40 / 3x1 1/288.9x48.3 3.500x1 90051 / 2.01146 / 5.7586 / 3.3985 / 3.3555 / 2.17M12x70-2
80x50 / 3x288.9 x 60.3 3.500 x 2.37564 / 2.52146 / 5.7596 / 3.7885 / 3.3555 / 2.17M12x70-2
80x50 / 3x2 1/288.9x73 / 3.500x3.00064 / 2.52146 / 5.7596 / 3.7885 / 3.3555 / 2.17M12x70-2
100x25 / 4x 1114x33 / 4.500 x 1.3338 / 1.496178 / 7.0174 / 2.9198 / 3.8669 / 2.72M12x75-2
100x32 / 4x 1 1/4114.3x42.4 4.500 x 1.66051 / 2.01178 / 7.0186 / 3.3998 / 3.8669 / 2.72M12x75-2
100x40 / 4x1 1/2114.3x48.3 4.500 x 1.90051 / 2.01178 / 7.0186 / 3.3998 / 3.8669 / 2.72M12x75-2
100x50 / 4x2114.3x60.3 4.500x2.37564 / 2.52178 / 7.01100 / 3.9498 / 3.8669  / 2.72M12x75-2
100x65 / 4x2 1/2114.3x73.0 4.500x2.87570 / 2.76178 / 7.01106 / 4.1798 / 3.8669 / 2.72M12x75-2
100x65 / 4x2 1/2114.3x76.1 4.500 x 3.00070 / 2.76178 / 7.01106 / 4.1798 / 3.8669 / 2.72M12x75-2
100x80 / 4x3114.3x88.9 / 4.500 x 3.50089 / 3.5178 / 7.01124 / 4.88299 / 3.89869 / 2.72M12x75-2
125x40 / 5x1 1/2139.7x48.3 5.500x1.90051 / 2.01213 / 8.3986 / 3.39110 / 4.3381 / 3.19M16x85-2
125x50 / 5x2139.7x60.3 5.500 x 237564 / 2.52213 / 8.39102 / 4.02110 / 4.3381 / 3.19M16x85-2
125x65 / 5x2 1/2139.7x76.1 5.500x3.00070 / 2.76213 / 8.39108 / 4.25110 / 4.3381 / 3.19M16x85-2
125x80 / 5x3139.7x88.9 / 5.500x3.50089 / 3.5213 / 8.39124 / 4.882110 / 4.3381 / 3.19M16x85-2
150x50 / 6x2165.1x60.3 / 6.500x2.37564 / 2.52238 / 9.37100 / 3.94125 / 4.9295 / 3.74M16x 105-2
150x65 / 6x2 1/2165 1x73.0 / 6.500x2.87570 / 2.76238 / 9.37108 / 4.25129 / 5.0895 / 3.74M16x 105-2
150x65 / 6x2 1/2165.1 x 76.1 / 6.500 x 3.00070 / 2.76238 / 9.37113 / 4.45122 / 4.895 / 3.74M16x 105-2
150x80 / 6x3165.1x88.9 / 6.500 x 3.589 / 3.5242 / 9.528128 / 5.039124 / 4.88293 / 3.661M16x 105-2
150x32 / 6x1 1/4168.3x42.4 / 6.625x1 66051 / 2.01255 / 10.0488 / 3.46123 / 4.8496 / 3.78M16x 105-2
150x40 / 6x1 1/2168.3x48.3 / 6.625x1.90051 / 2.01255 / 10.0488 / 3.46123 / 4.8496 / 3.78M16x 105-2
150x50 / 6x2168.3x60.3 / 6.625x2.37564 / 2.52255 / 10.04102 / 4.02123 / 4.8496 / 3.78M16x 105-2
150x65 / 6x2 1/2168.3x73.0 / 6.625x2.87570 / 2.76255 / 10.04108 / 4.25127 / 5.00096 / 3.78M16x 105-2
200 x 50 / 8x2219.1x60.3 / 8.625x2.37564 / 2.52310 / 12.2104 / 4.09153 / 6.02124 / 4.88M20x 115-2
200 x 65 / 8x2 1/2219.1x73.0 / 8.625x2.87570 / 2.76310 / 12.2108 / 4.25153 / 6.02124 / 4.88M20x 115-2
200x65 / 8x2 1/2219 1 x 76.1 / 8.625 x 3.00070 / 2.76310 / 12.2115 / 4.53152 / 5.98124 / 4.88M20x115-2
200x80 / 8x3219.1x88.9 / 8.625x3.50089 / 3.5310 / 12.2127 / 5152 / 5.98124 / 4.88M20x 115-2
