Mechanical Tee Threaded Outlet

Mechanical Tee Threaded Outlet

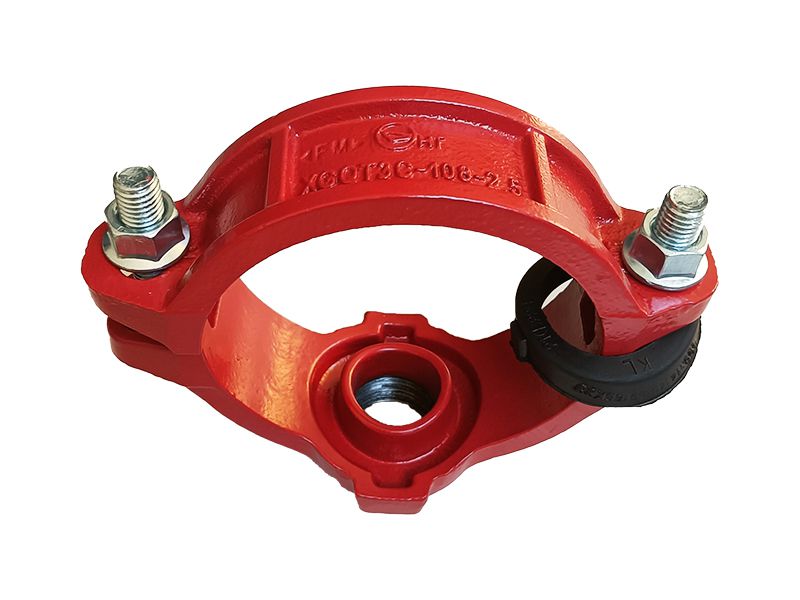

Mechanical tees threaded outlet consist of upper and lower housings, a gasket, and bolts/nuts, providing a simple and fast method for branch connection. The self-sealing structure of the gasket ensures permanent sealing. During field operations, mechanical tees can be tightly installed on the pipeline to ensure the accuracy of the branch outlet connection.

Features

  • Mechanical tees threaded outlet provides an additional threaded outlet in existing piping.

  • For new construction, the mechanical tee provides a way to bypass the use of a reducing tee.

  • The mechanical tee may be easily converted into a cross when necessary.

Recommended Applications

Mechanical tees threaded outlet is suitable for piping systems, such as fire protection piping and sprinkler piping systems.


Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM/UL/CE certified
  • Coating
    Coating: epoxy/galvanized
  • Material
    Material: ductile iron
Content
Nominal SizePipe ODHole DiaDimensionsBolt Size
mm/inmm/inHole Cutting Measurementmm/inNo.-Size / mm

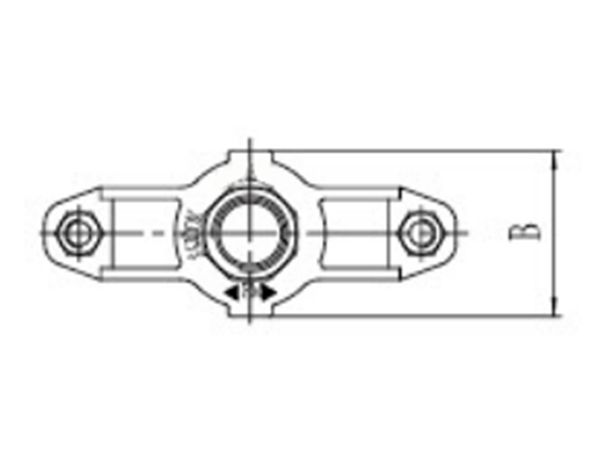

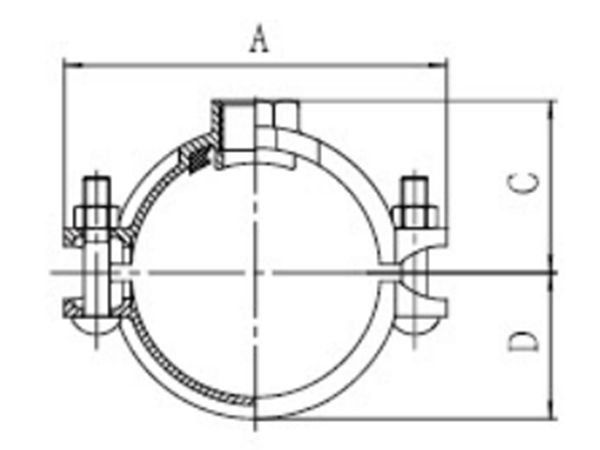

A / mmB / mmC / mmD / mm
50×15 / 2×1/460x21 / 2.375×0.82738 / 1.5118 / 4.6474 / 2.9155 / 2.1740 / 1.57M10×55-2
50×20 / 2×3/460x27 / 2.375×1.06338 / 1.5118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
50×25 / 2×160.3×33.7 / 2.375×1.31538 / 1.5118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
50×32 / 2×1 1/460.3×42.4 / 2.375×1.66045 1.77118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
50×40 / 2×1 1/260.3×48.3 / 2.375×1.90045 / 1.77118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
65×15 / 2 1/2×1/473x21 / 2.875×0.82738 / 1.5132 / 5.274 / 2.9162 / 2.5247 / 1.85M12×70-2
65×20 / 2 1/2×3/473x27 / 2.875×1.06338 / 1.5132 / 5.274 / 2.9162 / 2.5247 / 1.85M12×70-2
65×25 / 2 1/2×173×33.7 / 2.875×1.31538 / 1.5132 / 5.274 / 2.9164 / 2.5247 / 1.85M12×70-2
65×32 / 2 1/2×1 1/473×42.4 / 2.875×1.66051 / 2.01132 / 5.282 / 3.2364 / 2.5247 / 1.85M12×70-2
65×40 / 2 1/2×1 1/273×48.3 / 2.875×1.90051 / 2.01132 / 5.282 / 3.2364 / 2.5247 / 1.85M12×70-2
65×50 / 2 1/2×273x60 / 2.875×2.37551 / 2.01132 / 5.284 / 3.2375 / 2.9547 / 1.85M12×70-2
65×15 / 2 1/2×1/476x21 / 3.000×0.82738 / 1.5135 / 5.3172 / 2.8362 / 2.5248 / 1.89M12×70-2
65×20 / 2 1/2×3/476x27 / 3.000×1.06338 / 1.5135 / 5.3172 / 2.8364 / 2.5248 / 1.89M12×70-2
65×25 / 2 1/2×176.1×33.7 / 3.000×1.31538 / 1.5135 / 5.3172 / 2.8364 / 2.5248 / 1.89M12×70-2
65×32 / 2 1/2×1 1/476.1×42.4 / 3.000×1.66051 / 2.01135 / 5.3185 / 3.3566 / 2.6048 / 1.89M12×70-2
65×40 / 2 1/2×1 1/276.1×48.3 / 3.000×1.90051 / 2.01135 / 5.3185 / 3.3566 / 2.6048 / 1.89M12×70-2
65×50 / 2 1/2×276x60 / 3.000×2.37551 / 2.01135 / 5.3184 / 3.2376 / 2.9948 / 1.89M12×70-2
80×15 / 3×1/288.9×21.3 / 3.500×0.82538 / 1.50146 / 5.7574 / 2.9166 / 2.6055 / 2.17M12×70-2
80×20 / 3×3/488.9×26.7 / 3.500×1.05038 / 1.50146 / 5.7574 / 2.9166 / 2.6055 / 2.17M12×70-2
80×25 / 3×188.9×33.7 / 3.500×1.31538 / 1.18146 / 5.7574 / 2.9170 / 2.7655 / 2.17M12×70-2
80×32 / 3×1 1/488.9×42.4 / 3.500×1.66051 / 2.01146 / 5.7586 / 3.3973 / 2.8755 / 2.17M12×70-2
80×40 / 3×1/288.9×48.3 / 3.500×1.90051 / 2.01146 / 5.7586 / 3.3977 / 3.0355 / 2.17M12×70-2
80x50 / 3x288 9 x 60.3 3.500 x 2.37564 / 2.52146 / 5.7596 / 3.7880 / 3.1555 / 2.17M12x70-2
80x65 / 3x2 1/289x76 / 3.500 x 3.00064 / 2.52146 / 5.7599 / 3.9084 / 3.3155 / 2.17M12×70-2
100x25 / 4x1108x33.7 4.250x1.31538 / 1.5172 / 6.7772 / 28376 / 2.9964 / 2.52M12x75-2
100x32 / 4x1 1/4108.0x42.4 / 4.250x1.66051 / 2.01172 / 6.7782 / 3.2376 / 2.9964 / 2.52M12x75-2
100x40 / 4x1 1/2108.0x48.3 / 4.250x1.90051 / 2.01172 / 6.7782 / 3.2376 / 2.9964 / 2.52M12x75-2
100x50 / 4x2108.0x60.3 / 4.250x2.37564 / 2.52172 / 6.7795 / 3.7478 / 3.0764 / 2.52M12x75-2
100x15 / 4x1/4114x21 / 4.500x0.82538 / 1.5178  / 7.0174 / 2.9183 / 3.2769 / 2.72M12x75-2
100x20 / 4x3/4114x27 / 4.500x1.06338 / 1.5178  / 7.0174 / 2.9183 / 3.2769 / 2.72M12x75-2
100x25 / 4x1114.3x33.7 4.500x1.31538 / 1.5178 / 7.0174 / 2.9186 / 3.9969 / 2.72M12x75-2
100x32 / 4x1 1/4114.3x42.4 / 4.500x1.66051 / 2.01178  / 7.0186  / 3.3987 / 3,4369 / 2.72M12x75-2
100x40 / 4 x1 1/2114,3x48.3 4.500 X1.90051 / 2.01178  / 7.0186  / 3.3989 / 3.5169 / 2.72M12x75-2
100x50 / 4x2114.3x60.3 4.500x2.37564 / 2.52178 / 7.01100 / 3.9494 / 3.769 / 2.72M12x75-2
100x65  / 4x2 1/2114.3x76.1 4500x3.00070 / 2.76178 / 7.01106 / 4.17100 / 3.9469 / 2.72M12x75-2
100x80 / 4x3114.3x88.9 4.500x3.50089 / 3.5178 / 7.01124 / 4.8899 / 3.969 / 2.72M12x75-2
125x25 / 5x1133.0 x 33 7 5.250x1.31538 / 1.5200 / 7.8774 / 2.9195 / 3.7477 / 3.03M16x85-2
125x32 / 5x1 1/4133.0 x 42.4 5.250x1.66051 / 2.01200 / 7.8786  / 3.3995 / 3.7477 / 3.03M16x85-2
125x40 / 5x1 1/2133.0x48.3 5.250x1.90051 / 2.01200 / 7.8786  / 3.3995 / 3.7477 / 3.03M16x85-2
125x50 / 5x2133.0 x 60.3 5.250x2.37564 / 2.52200 / 7.87100 / 3.94104 / 4.0977 / 3.03M16x85-2
125x25 / 5x1139.7x33.7 5.503x1.31538 / 1.5213 / 8.3974 / 2.9198 / 3.8681 / 3.19M16x85-2
125x32 / 5x1 1/4139,7x42.4 5.500x1.66051 / 2.01213 / 8.3986 / 3.3999 / 3.981 / 3.19M16x85-2
125x40 / 5x1 1/2139.7x48.3 5.500 x1.90051 / 2.01213 / 8.3986 / 3.39111 / 4.3781 / 3.19M16x85-2
125x50 / 5x2133.0 x 60.3 5.250x2.37564 / 2.52213 / 8.39100 / 2.19106 / 4.1781 / 3.19M16x85-2
125x65 / 5x2 1/2139.0 x 76.1 / 5.500x3.00070 / 2.76213 / 8.39108 / 4.25110 / 4.3381 / 3.19M16x85-2
150x25 / 6x1165.1x33.7 / 6.500x1.31538 / 1.5239 / 9.4174 / 2.91112 / 4.4195 / 3.74M16x 105-2
150x32 / 6x1 1/4165.1x42.4 / 6.500x1.66051 / 2.01239 / 9.4186 / 3.39113 / 4.4595 / 3.74M16x 105-2
150x40 / 6x1 1/2165.1x48.3 / 6.500x1.90051 / 2.01239 / 9.4186 / 3.39115 / 4.5395 / 3.74M16x 105-2
150x50 / 6x2165.1x60.3 / 6.500x2.37564 / 2.52239 / 9.41100 / 3.94120 / 4.7295 / 3.74M16x 105-2
150x65 / 6x2 1/2165.1x76.1 / 6.500x3.00070 / 2.76239 / 9.41108 / 4.25124 / 4.6895 / 3.74M16x105-2
150x80 / 6x3165.1x88.9 / 6.500x3.50089 / 3.5239 / 9.41126 / 4.96123 / 4.8495 / 3.74M16x 105-2
150x25 / 6x1168.3 x 33.7 / 6.625x1.31538 / 1.5255 / 10.0474 / 2.91115 / 4.5396 / 3.78M16x105 2
150x32 / 6x1 1/4168.3x42.4 / 6.625x1.66051 / 2.01255 / 10.0488 / 3.64115 / 4.5396 / 3.78M16x 105-2
150x40 / 6x1 1/2168.3 x 48.3 6.625x1.90051 / 2.01255 / 10.0488 / 3.64115 / 4.5396 / 3.78M16x 105-2
150x50 / 6x2168.3x60.3 6.625x2.37564 / 2.52255 / 10.04102 / 4.02120 / 4.7296 / 3.78M16x 105-2
150x65 / 6x2 1/2168.3 x 73 6.625x3.00070 / 2.76255 / 10.04108 / 4.25122 / 4.8096 / 3.78M16x 105-2
150x80 / 6x3168.3 x 88.9 / 6.625x3.50089 / 3.5255 / 10.04124 / 4.88122 / 4.8096 / 3.78M16x 105-2
200x25 / 8x1219.1 x 33.7 / 8.625x3.31538 / 1.5310 / 12.2173 / 2.87135.5 / 5.35115 / 4.53M20x 115-2
200x32 / 8x1 1/4219.1 x42.4 / 8.625x1.66051 / 2.01310 / 12.2182 / 3.23135.5 / 5.35115 / 4.53M20x 115-2
200x40 / 8x1 1/2219.1 x48.3 / 8.625x1.90051 / 2.01310 / 12.2186 / 3.39135.5 / 5.35115 / 4.53M20x 115-2
200x50 / 8x2219.1 x 33.7 / 8.625x2.37538 / 1.5310 / 12.2197 / 3.82138 / 5.43115 / 4.53M20x 115-2
200x65 / 8x2 1/2219.1 x76.1 / 8.625x3.00070 / 2.76310 / 12.21115 / 4.53138 / 5.43115 / 4.53M20x 115-2
