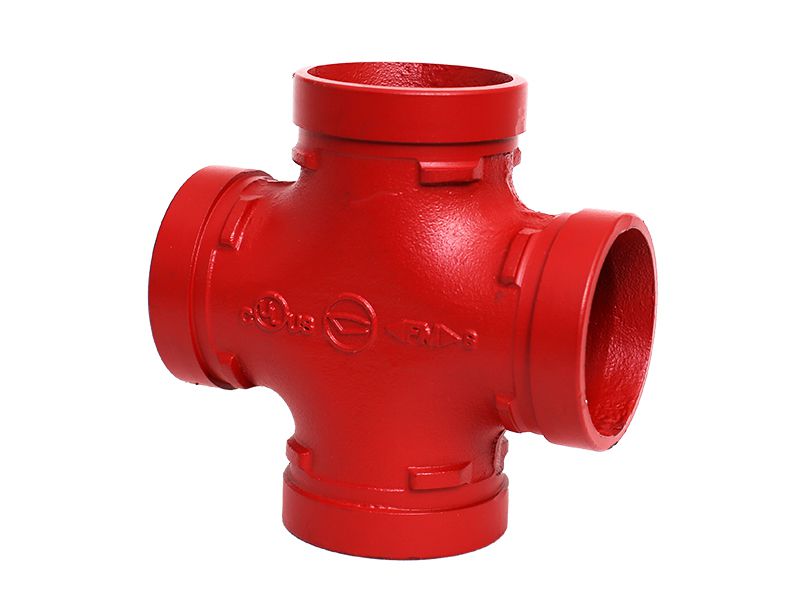

Grooved Equal Cross
Grooved Equal Cross
Grooved equal cross features convenient and quick connections utilizing a coupling. Simply insert the pipe into the coupling and tighten the bolts. Compared to traditional welding methods, the grooved equal cross provides a simpler and faster installation, eliminating the need for specialized tools and techniques, thus greatly improving construction efficiency.
The grooved equal cross also offers excellent sealing performance. A rubber gasket ensures effective leak-free sealing. The rubber gasket possesses good elasticity and corrosion resistance, making it suitable for conveying different mediums and ensuring the sealing performance of the pipeline system, thereby reducing safety hazards caused by leaks.
Grooved equal cross is suitable for various water, gas, and oil pipeline systems in industries, building construction projects, municipal applications, etc.

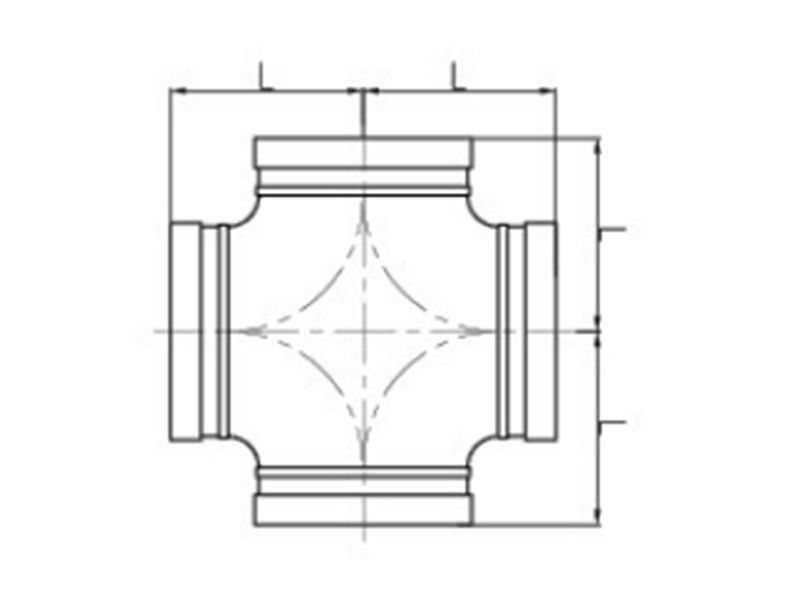

| Nominal Size | Pipe OD. | Dimensions |
| mm/in | mm/in | L mm/in |
| 50 / 2 | 60.3 / 2.375 | 82 / 3.23 |
| 65 / 2 1/2 | 73 / 2.875 | 76 / 2.99 |
| 65 / 2 1/2 | 76.1 / 3 | 95 / 3.74 |
| 80 / 3 | 88.9 / 3.5 | 108 / 4.25 |
| 100 / 4 | 108 / 4.25 | 96 / 3.78 |
| 100 / 4 | 114.3 / 4.5 | 127 / 5 |
| 125 / 5 | 133 / 5.25 | 110 / 4.33 |
| 125 / 5 | 139.7 / 5.5 | 140 / 5.51 |
| 125 / 5 | 141.3 / 5.563 | 121 / 4.76 |
| 150 / 6 | 159 / 6.25 | 122 / 4.8 |
| 150 / 6 | 165.1 / 6.5 | 165 / 6.5 |
| 150 / 6 | 168.3 / 6.625 | 140 / 5.51 |
| 200 / 8 | 219.1 / 8.625 | 179 / 7.05 |
