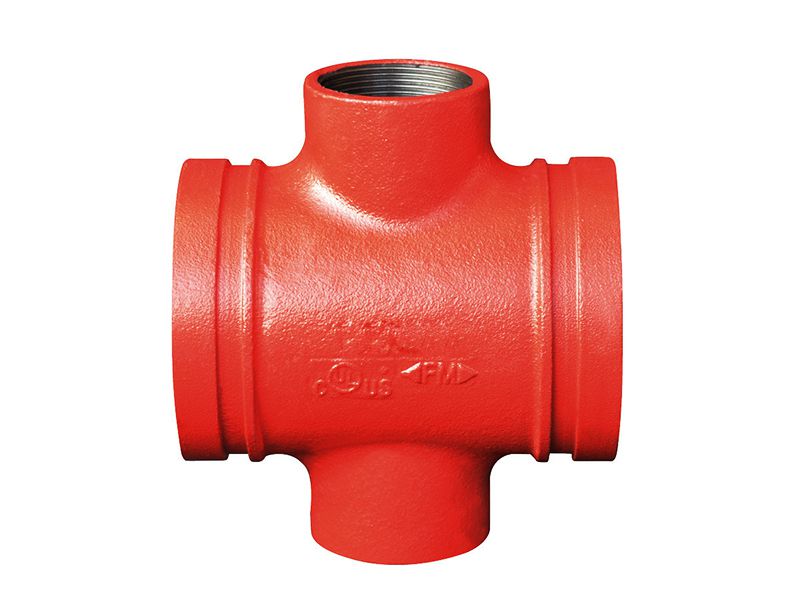

Threaded Reducing Cross

Threaded Reducing Cross

Threaded Reducing Cross

Threaded Reducing Cross

Threaded Reducing Cross

Threaded Reducing Cross

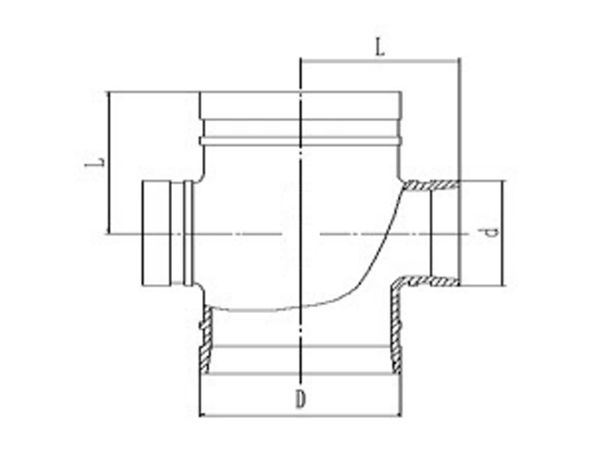

Nominal Size	Pipe OD.	Dimensions	Dimensions
mm/in	mm/in	L1 mm/in	L2 mm/in
65×50 / 2 1/2×2	76x60 / 3.000×2.375	76 / 3.00	76 / 3.00
100x80 / 4x3	114 3x88.9 / 4.500x3.500	102 / 4.02	102 / 4.02
150x100 / 6x4	165.1 x 114.3 / 6.500x4.500	165 / 6.5	165 / 6.5
150x80 / 6x3	168.3x88.9 / 6.625x3.500	140 / 5.51	140 / 5.51
150x100 / 6x4	168.3x114.3 / 6.625x4.500	140 / 5.51	140 / 5.51

Certification

Certification

Send Inquiry

Key Specifications

Available sizes: 3×1 inch~12×4 inch |DN80×25~DN300×100
Working pressure: 300PSI/2.07MPa
Certificate: CE certified
Coating: epoxy /galvanized
Color: red/orange/white etc.

Content

Nominal Size	Pipe OD.	Dimensions	Dimensions
mm/in	mm/in	L1 mm/in	L2 mm/in
65×50 / 2 1/2×2	76x60 / 3.000×2.375	76 / 3.00	76 / 3.00
100x80 / 4x3	114 3x88.9 / 4.500x3.500	102 / 4.02	102 / 4.02
150x100 / 6x4	165.1 x 114.3 / 6.500x4.500	165 / 6.5	165 / 6.5
150x80 / 6x3	168.3x88.9 / 6.625x3.500	140 / 5.51	140 / 5.51
150x100 / 6x4	168.3x114.3 / 6.625x4.500	140 / 5.51	140 / 5.51
