Grooved Reducing Cross
Grooved Reducing Cross

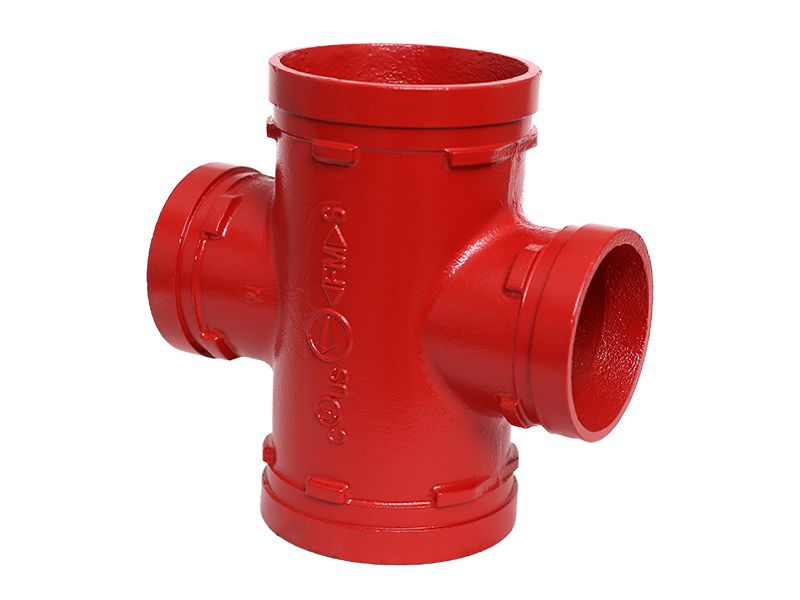

Grooved reducing cross is a pipe fitting with a cross shape. The branch outlet has grooves and a different size than the main outlet, which is commonly used to create two branch pipelines to 90 degree direction for connecting pipes of different diameters. This reducing tee provides a change in direction and adapts sizes or components. The appearance can be treated with epoxy powder, hot-dipped zinc, paint, dacromet, or according to your requirements.
Grooved reducing cross is suitable for water, gas, and oil piping systems in various industrial, building construction, municipal, and other fields.

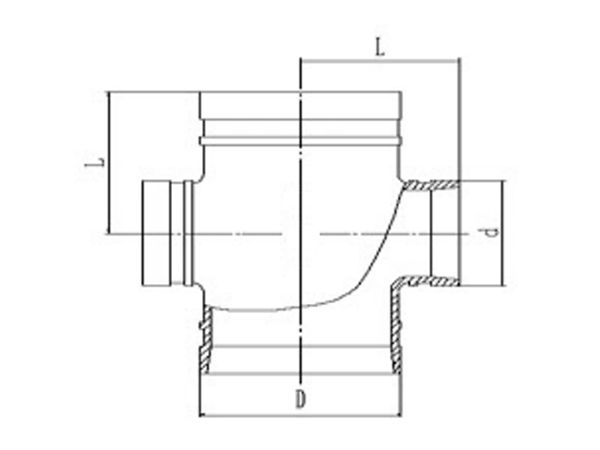

| Nominal Size | Pipe OD. | Dimensions | Dimensions |
| mm/in | mm/in | L1 mm/in | L2mm/in |
| 65×50 / 2 1/2×2 | 76x60 / 3.000×2.375 | 76 / 3.00 | 76 / 3.00 |
| 100x80 / 4x3 | 114 3x88.9 / 4.500x3.500 | 102 / 4.02 | 102 / 4.02 |
| 150x100 / 6x4 | 165.1 x 114.3 / 6.500x4.500 | 165 / 6.5 | 165 / 6.5 |
| 150x80 / 6x3 | 168.3x88.9 / 6.625x3.500 | 140 / 5.51 | 140 / 5.51 |
| 150x100 / 6x4 | 168.3x114.3 / 6.625x4.500 | 140 / 5.51 | 140 / 5.51 |
