Grooved 11.25° Elbow
Grooved 11.25° Elbow

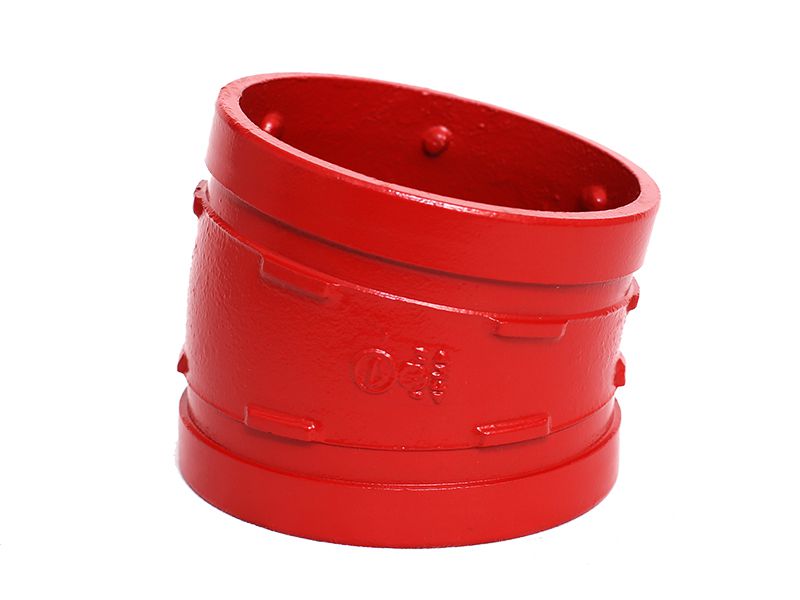

Grooved 11.25°elbow is a pipe fitting that is used to connect two pipes with the same size so as to make the pipeline turn 11.25 degrees for changing the flow direction. This grooved elbow facilitates the adaptation of sizes or components.
Grooved 11.25° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

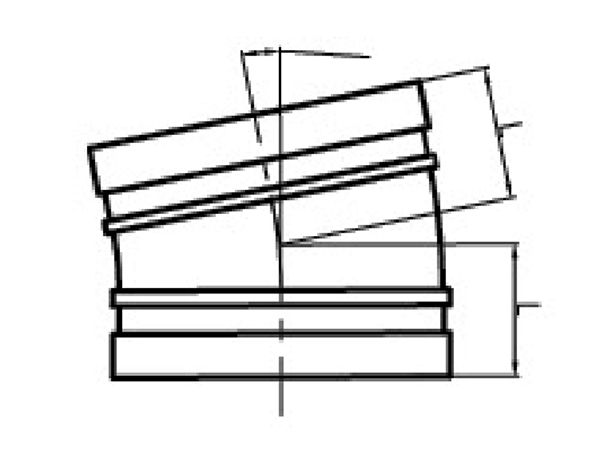

| Nominal Size | Pipe OD. | Dimensions |
| mm/in | mm/in | L mm/in |
| 50 / 2 | 60.3 / 2.375 | 35 / 1.38 |
| 65 / 2 1/2 | 73 / 2.875 | 38 / 1.5 |
| 65 / 2 1/2 | 76.1 / 3.000 | 38 / 1.5 |
| 80 / 3 | 88.9 / 3.5 | 40 / 1.57 |
| 100 / 4 | 108 / 4.25 | 44 / 1.73 |
| 100 / 4 | 114.3 / 4.5 | 44 / 1.73 |
| 150 / 6 | 159 / 6.25 | 50 / 1.97 |
| 150 / 6 | 165.1 / 6.5 | 50 / 1.97 |
| 150 / 6 | 168.3 / 6.625 | 50 / 1.97 |
| 200 / 8 | 219.1 / 8.625 | 50 / 1.97 |
