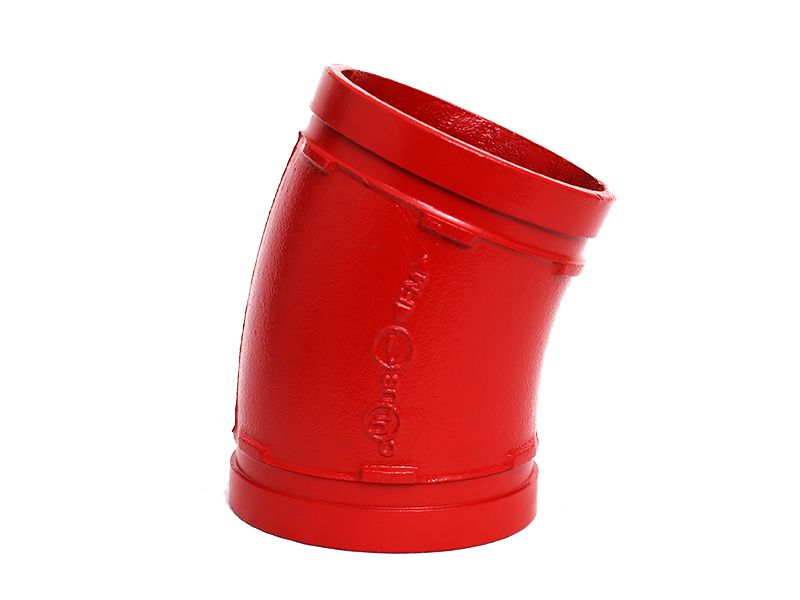

Grooved 22.5° Elbow

Grooved 22.5°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 22.5 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

Recommended Applications

Grooved 22.5° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Send Inquiry

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN600
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy /galvanized
Color: red/orange/white etc.

Content

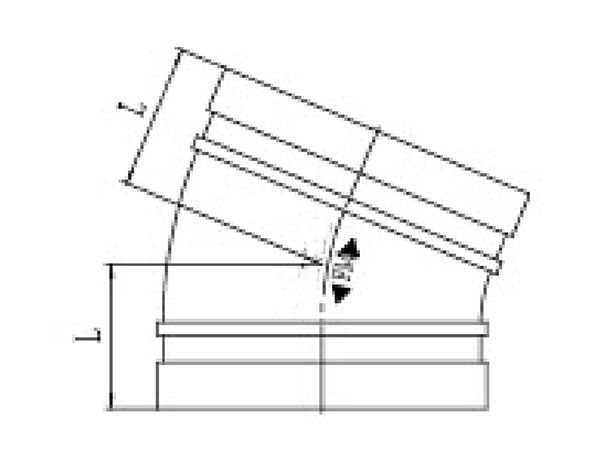

Nominal Size	Pipe OD.	Dimensions
mm/in	mm/in	L mm/in
50 / 2	60.3 / 2.375	48 / 1.89
65 / 2 1/2	73 / 2.875	51 / 2.01
65 / 2 1/2	76.1 / 3	51 / 2.01
80 / 3	88.9 / 3.5	57 / 2.24
100 / 4	108 / 4.25	73 / 2.87
100 / 4	114.3 / 4.5	70 / 2.76
125 / 5	133 / 5.25	73 / 2.87
125 / 5	139.7 / 5.5	73 / 2.87
150 / 6	165.1 / 6.5	89 / 3.5
150 / 6	168.3 / 6.625	79 / 3.11
200 / 8	219.1 / 8.625	98 / 3.85
