Grooved 90° Elbow - HT Casting

Grooved 90° Elbow

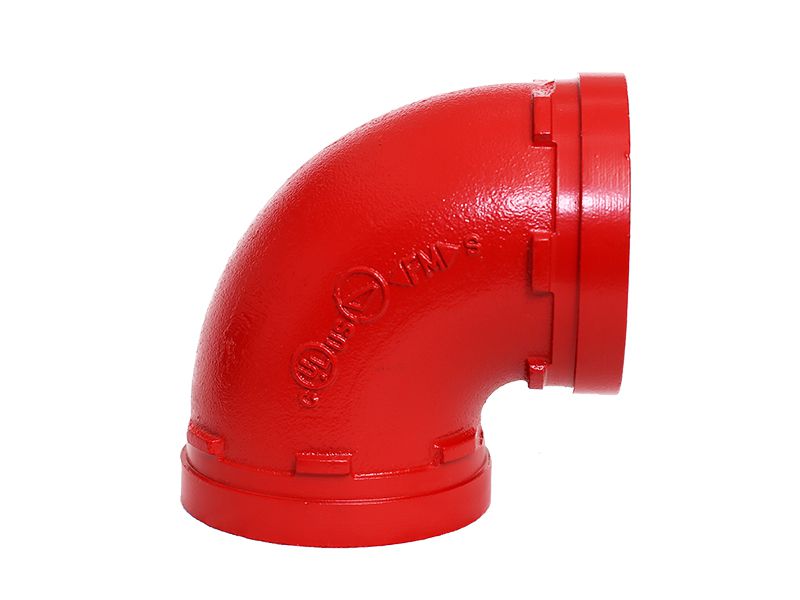

Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

Recommended Applications

Grooved 90° elbow is suitable for drinking water systems, indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Send Inquiry

Key Specifications

Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy /galvanized
Color: red/orange/white etc.

Content

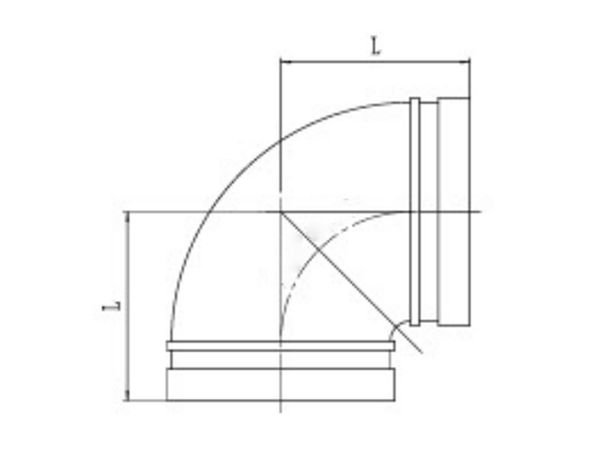

Nominal Size	Pipe OD	Dimensions
mm/in	mm/in	mm
25 / 1	33.7 / 1.327	57 / 2.24
32 / 1 1/4	42.4 / 1.669	60 / 2.36
40 / 1 1/2	48.3 / 1.9	60 / 2.36
50 / 2	60.3 / 2.375	70 / 2.76
65 / 2 1/2	73 / 2.875	76 / 2.99
65 / 2 1/2	76.1 / 3	76 / 2.99
80 / 3	88.9 / 3.5	80 / 3.15
100 / 4	108 / 4.25	102 / 4.02
100 / 4	114.3 / 4.5	96 / 3.78
125 / 5	133 / 5.25	121 / 4.76
125 / 5	139.7 / 5.5	121 / 4.76
125 / 5	141.3 / 5.563	121 / 4.76
150 / 6	159 / 6.25	140 / 5.51
150 / 6	165.1 / 6.5	122 / 4.8
150 / 6	168.3 / 6.625	140 / 5.51
200 / 8	219.1 / 8.625	150 / 5.91
250 / 10	273 / 10.75	215 / 8.46
300 / 12	323.9 / 12.75	245 / 9.65
