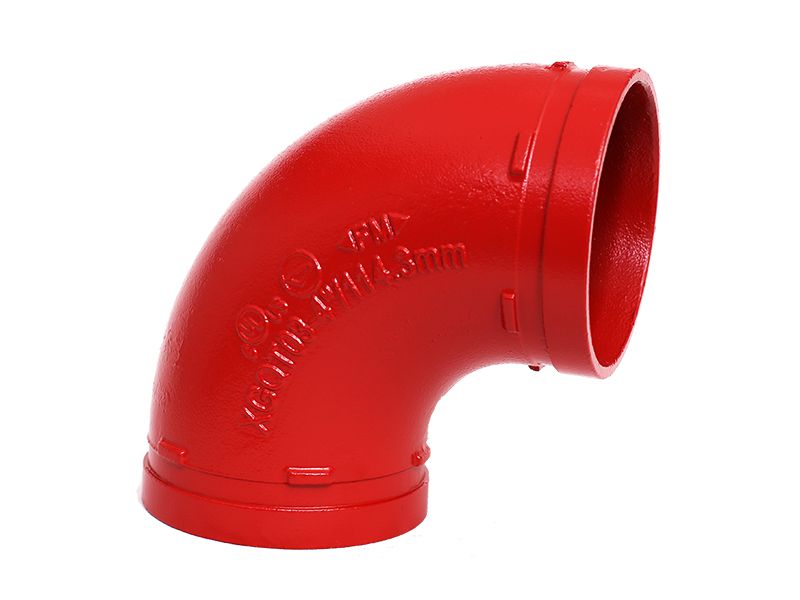

Grooved Long Radius 90° Elbow

Grooved long radius 90° elbow is used for connecting two pipes with the same size to make the pipeline turn 90 degrees for changing in flow direction. This elbow also adapts sizes or components.

Recommended Applications

Grooved long radius 90° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Send Inquiry

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy /galvanized
Color: red/orange/white etc.

Content

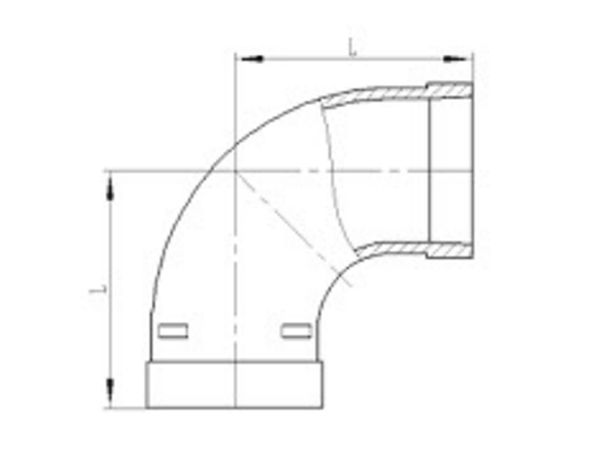

Nominal Size	Pipe OD	Dimensions
mm/in	mm/in	mm
25 / 1	33.7 / 1.327	57 / 2.24
32 / 1 1/4	42.4 / 1.669	60 / 2.36
40 / 1 1/2	48.3 / 1.9	60 / 2.36
50 / 2	60.3 / 2.375	70 / 2.76
65 / 2 1/2	73 / 2.875	76 / 2.99
65 / 2 1/2	76.1 / 3	76 / 2.99
80 / 3	88.9 / 3.5	80 / 3.15
100 / 4	108 / 4.25	102 / 4.02
100 / 4	114.3 / 4.5	96 / 3.78
125 / 5	133 / 5.25	121 / 4.76
125 / 5	139.7 / 5.5	121 / 4.76
125 / 5	141.3 / 5.563	121 / 4.76
150 / 6	159 / 6.25	140 / 5.51
150 / 6	165.1 / 6.5	122 / 4.8
150 / 6	168.3 / 6.625	140 / 5.51
200 / 8	219.1 / 8.625	150 / 5.91
250 / 10	273 / 10.75	215 / 8.46
300 / 12	323.9 / 12.75	245 / 9.65

Grooved 90° Elbow

Grooved 90° Reducing Elbow
