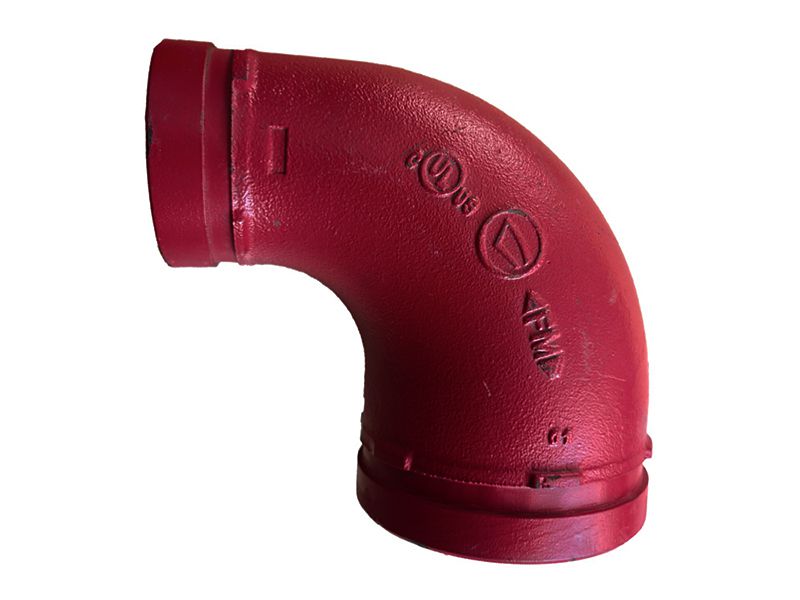

Grooved 90° Reducing Elbow

Grooved 90° Reducing Elbow

Grooved 90° reducing elbow is an elbow fitting for connecting two pipes of different sizes to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

Recommended Applications

Grooved 90° reducing elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Certification
Certification
Certification
Certification
Send Inquiry
Key Specifications
  • Available sizes
    Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM / UL /CE certified
  • Coating
    Coating: epoxy /galvanized
  • Color
    Color: red/orange/white etc.
Content

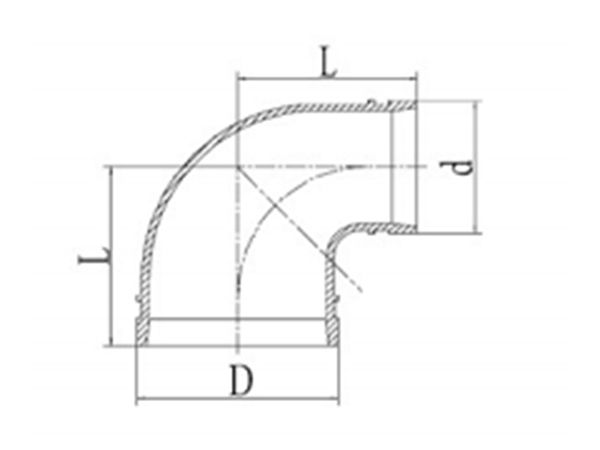

Nominal SizePipe O.D.Dimension
mm/inmm/inLmm
32*25 / 1 1/4*142.4*33.7 / 1.66*1.3277O
40*25 / 1 1/2*148.3*33.7 / 1.9*1.3277O
40*32 / 1 1/2*1 1/448.3*42.4 / 1.9*1.667O
50*25 / 2*160.3*33.7 / 2.375*1.32783
50*32 / 2*1 1/460.3*42.4 / 2.375*1.6683
60*40 / 2 *1 1/260.3*48.3 / 2.375*1.983
65*25 / 2 1/2*176.1*Rc1 / 3*1.32795
65*32 / 2 1/2*1 1/476.1*42.4 / 3*1.6695
65*40 / 2 1/2*1 1/276.1*48.3 / 3*1.995
65*50 / 2 1/2*276.1*60.3 / 3*2.37595
80*25 / 3*188.9*33.7 / 3.5*1.927108
80*32 / 3*1 1/488.9*42.4 / B.5*1.68108
80*40 / 3*1 1/288.9*48.3 / 3.5*1.9108
80*50 / 3*288.9*60.3 / 3.5*2.375108
80*65 / 3*2 1/288.9*76.1 / 3.5*3108
100*65 / 4*2 1/2114.3*76.1 / 4.5*3127
100*80 / 4*3114.3*88.9 / 4.5*3.5127
150*100 / 6*4165.1*114.3 / 6.5*4.5165
150*100 / 6*4168.3*114.3 / 6.625*4.5165
